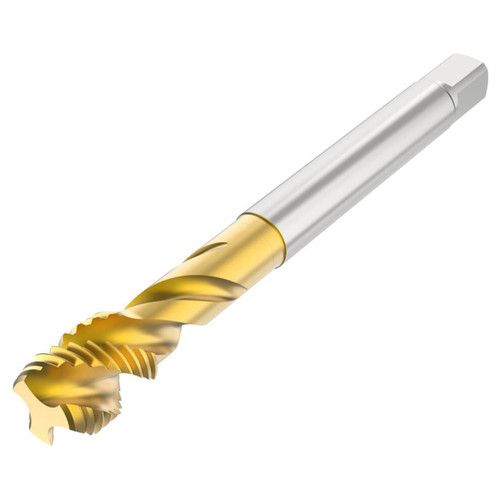

Seco Tools 10139634 | T32-R40N09C05-1_1/4-12-21R UNF11/4-12 Thread Size x 1.250" Diameter x 0.866" Shank x 5.906" OAL 40 Degree Helix Angle 4 Flute TiAIN+TiN Coated HSS-E Spiral Flute Tap

$313.95
Brand:
Seco Tools
Thread Size:
UNF11/4-12
Number of Flutes:
4
Material:
HSS-E
Finish/Coating:
TiAIN+TiN
Overall Length (Inch):
5-29/32"
Overall Length (Decimal Inch):
5.9060"
Overall Length (mm):
150.00mm
interval quantity:
1
SKU:
17994501
Weight:
0.89 LBS
Shipping:
Free Shipping
Seco Tools 10139634 | T32-R40N09C05-1_1/4-12-21R UNF11/4-12 Thread Size x 1.250" Diameter x 0.866" Shank x 5.906" OAL 40 Degree Helix Angle 4 Flute TiAIN+TiN Coated HSS-E Spiral Flute Tap

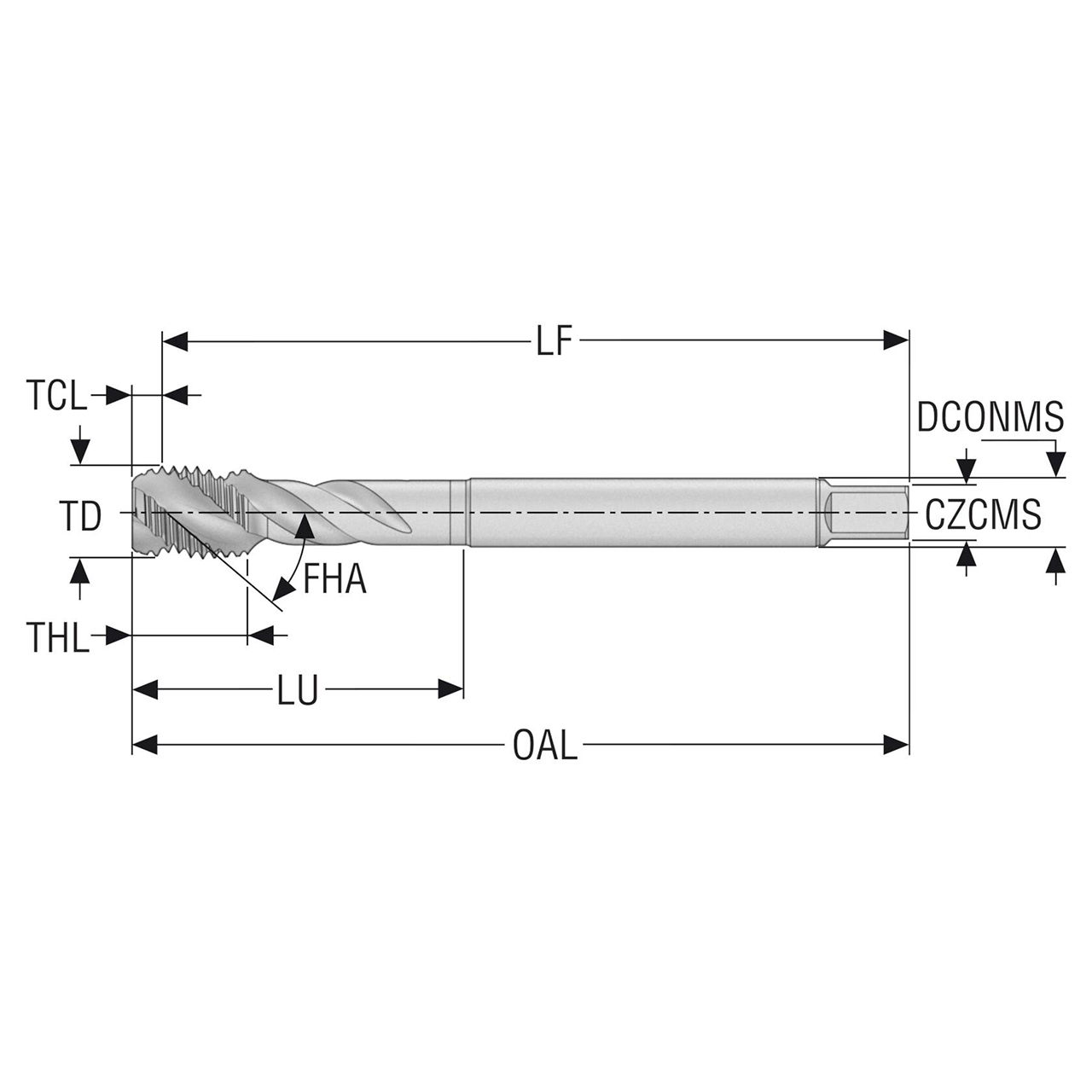

Product Specifications
Manufacturer Part Number10139634
Thread Diameter (Decimal Inch)1.250"
Thread Diameter (mm)31.75mm
Threading Chamfer Length (Decimal Inch)0.234"
Threading Chamfer Length (mm)5.94mm
Tap Chamfer Length (Decimal Inch)0.234"
Tap Chamfer Length (mm)5.94mm
Connection Diameter Machine Side (Decimal Inch)0.866"
Connection Diameter Machine Side (mm)22.00mm
Shank Diameter (Decimal Inch)0.866"
Shank Diameter (mm)22.00mm
Functional Length (Decimal Inch)5.672"
Functional Length (mm)144.06mm
Usable Length (Decimal Inch)3.347"
Usable Length (mm)85.00mm
Overall Length (Decimal Inch)5.906"
Overall Length (mm)150.00mm
Thread Length (Decimal Inch)0.866"
Thread Length (mm)22.00mm
Thread Diameter SizeUNF11/4-12
Recommended Premachined Hole Diameter (Decimal Inch)1.161"
Recommended Premachined Hole Diameter (mm)29.50mm
Connection Size Code22.00X18.00
Connection Size Code Machine Side22.00X18.00
Maximum Premachined Hole Diameter (Decimal Inch)1.178"
Maximum Premachined Hole Diameter (mm)29.92mm
Minimum Threads Per Inch (mm)12.00mm
Maximum Threads Per Inch (mm)12.00mm
Flute Helix Angle (Degree)40 Degree
Number of Flute4
Shank TypeCylindrical
Thread Tolerance Class2B
Threading Chamfer TypeC
Thread Form TypeUNF
Cutting DirectionRight Hand
Cutting Geometry TypeT32
Cutting Geometry Type TechnicalSpiral
MaterialHSS-E
CoatingTiAIN+TiN
Product TypeSpiral Flute Tap
