| Manufacturer Part Number | 10159526 |
| Fixing Hole Diameter (Decimal Inch) | 0.221" |
| Fixing Hole Diameter (mm) | 5.60mm |

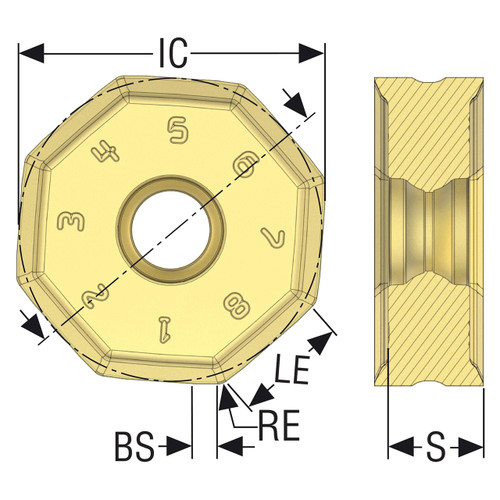

| Inscribed Circle Diameter (Decimal Inch) | 0.866" |
| Inscribed Circle Diameter (mm) | 22.00mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.268" |
| Cutting Edge Effective Length (mm) | 6.80mm |
| Wiper Edge Length (Decimal Inch) | 0.059" |
| Wiper Edge Length (mm) | 1.50mm |
| Corner Radius (Decimal Inch) | 0.039" |
| Corner Radius (mm) | 1.00mm |
| Insert Thickness (Decimal Inch) | 0.268" |
| Insert Thickness (mm) | 6.80mm |
| Insert Thickness 1 (Decimal Inch) | 0.228" |
| Insert Thickness 1 (mm) | 5.80mm |
| Cutting Edge Count | 16 |
| Insert Rake Angle (Degree) | 25 Degree |
| Insert Hand | Neutral |
| Cutting Geometry Type | ME |
| Cutting Geometry Type Technical | ME16 |
| Pocket Seat Code of The Cutter | ON.U0905 |
| Insert Size And Shape | ONMU0905 |
| Insert Shape Code | O |
| Material | Carbide |
| Product Type | Milling Insert |
