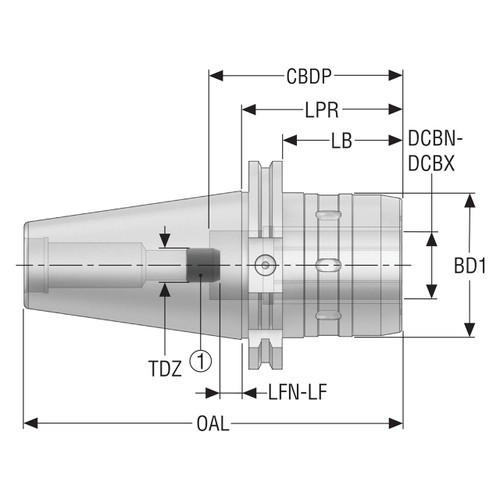

Product Specifications
| Manufacturer Part Number | 10185651 |
| Connection Bore Diameter (mm) | 32.00mm |
| Minimum Connection Bore Diameter (mm) | 10.00mm |
| Maximum Connection Bore Diameter (mm) | 32.00mm |
| Body Diameter 1 (mm) | 67.00mm |
| Thread Diameter Size | M16 |
| Connection Bore Depth (mm) | 80.00mm |
| Keyway Width (mm) | 8.00mm |
| Body Length (mm) | 75.90mm |
| Functional Length (mm) | 15.00mm |
| Minimum Functional Length (mm) | 10.00mm |
| Protruding Length (mm) | 90.00mm |
| Overall Length (mm) | 155.40mm |
| Data Chip Provision | 1 |
| Machine Side Group | BT & BT Taper-face |
| Maximum Rotational Speed (rpm) | 10000 rpm |
| Product Type | Milling Chuck |
