Product Specifications

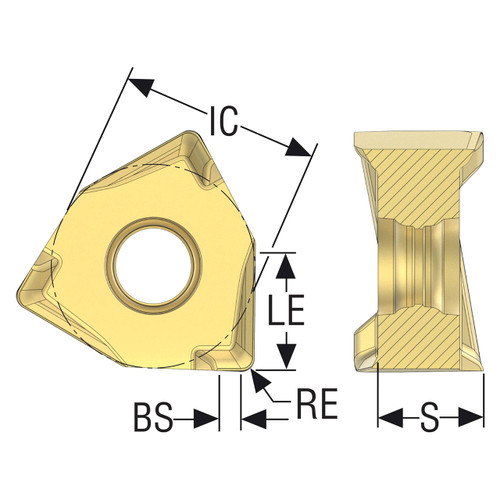

| Manufacturer Part Number | 10198766 |
| Fixing Hole Diameter (mm) | 4.60mm |
| Inscribed Circle Diameter (mm) | 12.48mm |
| Cutting Edge Effective Length (mm) | 7.50mm |
| Theoretical Cutting Edge Length (mm) | 8.00mm |
| Wiper Edge Length (mm) | 1.40mm |
| Corner Radius (mm) | 0.80mm |
| Insert Thickness (mm) | 6.45mm |
| Cutting Edge Count | 6 |
| Insert Included Angle (Degree) | 88.28 Degree |
| Insert Rake Angle (Degree) | 24 Degree |
| Insert Hand | Right Hand |
| Cutting Geometry Type | M |
| Cutting Geometry Type Technical | M08 |
| Pocket Seat Code of The Cutter | XN.X0806 |
| Insert Size And Shape | XNEX0806 |
| Material | Carbide |
| Product Type | Milling Insert |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Corner Radius (mm):
0.80mm
Insert Hand:
Right
interval quantity:
10
