Product Specifications

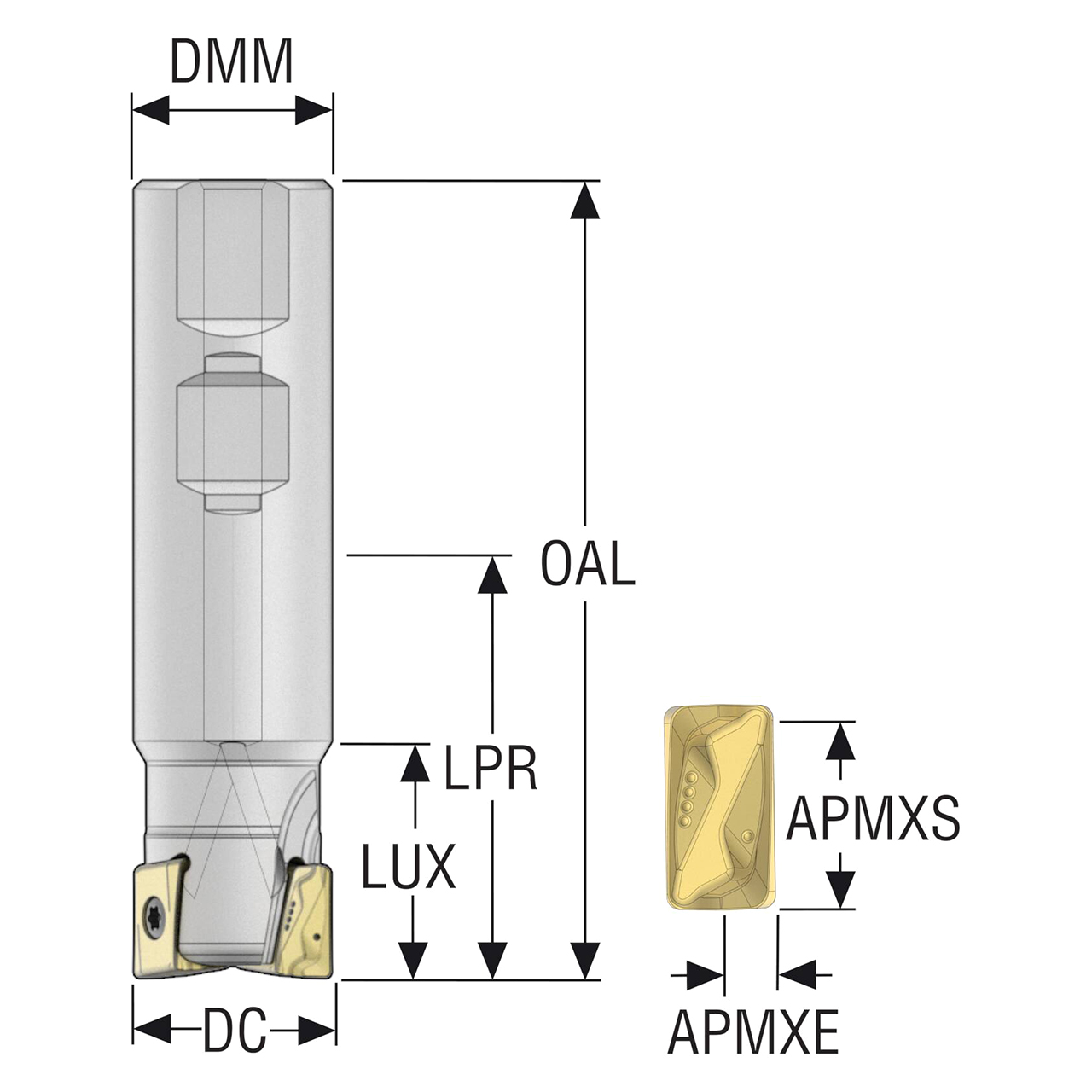

| Manufacturer Part Number | 10207985 |
| Cutting Diameter (mm) | 25.40mm |
| Connection Diameter Machine Side (mm) | 25.40mm |
| Shank Diameter (mm) | 25.40mm |
| Functional Length (mm) | 73.10mm |
| Protruding Length (mm) | 45.60mm |
| Shank Length (mm) | 71.60mm |
| Overall Length (mm) | 101.60mm |
| Maximum Depth of Cut (mm) | 12.00mm |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Rake Radial Angle (Degree) | -31 Degree |
| Rake Orthogonal Angle (Degree) | -31 Degree |
| Maximum Rotational Speed (rpm) | 14000 rpm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Pocket Seat Code of The Cutter | LOEX1207 |
| Coolant Exit Style Code | 3 |
| Cutting Item Material Type | Steel |
| Shank Type | Weldon |
| Product Type | Indexable Square-Shoulder End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Cutting Diameter (Inch):
25-2/5"
Cutting Diameter (Decimal Inch):
1.0000"
Cutting Diameter (mm):
25.40mm
Shank Type:
Weldon
Overall Length (Inch):
101-3/5"
Overall Length (Decimal Inch):
4.0000"
Overall Length (mm):
101.60mm
interval quantity:
1
