Product Specifications

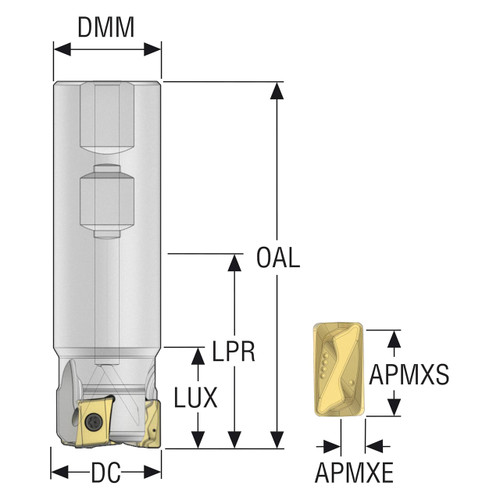

| Manufacturer Part Number | 10207986 |
| Cutting Diameter (mm) | 31.75mm |
| Connection Diameter Machine Side (mm) | 31.75mm |
| Shank Diameter (mm) | 31.75mm |
| Functional Length (mm) | 90.30mm |
| Protruding Length (mm) | 48.00mm |
| Shank Length (mm) | 78.00mm |
| Overall Length (mm) | 108.00mm |
| Maximum Depth of Cut (mm) | 12.00mm |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Rake Radial Angle (Degree) | -24 Degree |
| Rake Orthogonal Angle (Degree) | -24 Degree |
| Maximum Rotational Speed (rpm) | 12400 rpm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Differential | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Pocket Seat Code of The Cutter | LOEX1207 |
| Coolant Exit Style Code | 3 |
| Cutting Item Material Type | Steel |
| Shank Type | Weldon |

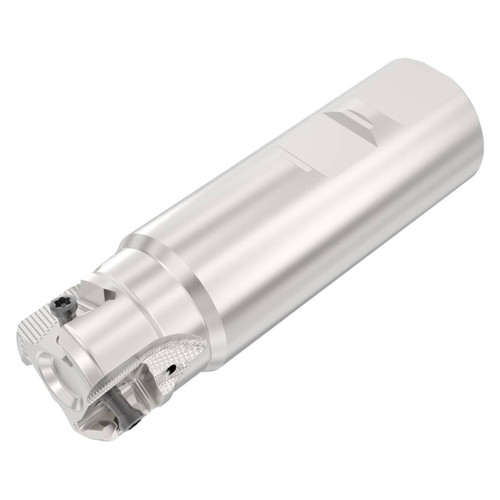

| Product Type | Indexable Square-Shoulder End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Cutting Diameter (Inch):
31-3/4"
Cutting Diameter (Decimal Inch):
1.2500"
Cutting Diameter (mm):
31.75mm
Shank Type:
Weldon
Overall Length (Inch):
108"
Overall Length (Decimal Inch):
4.2520"
Overall Length (mm):
108.00mm
