Product Specifications

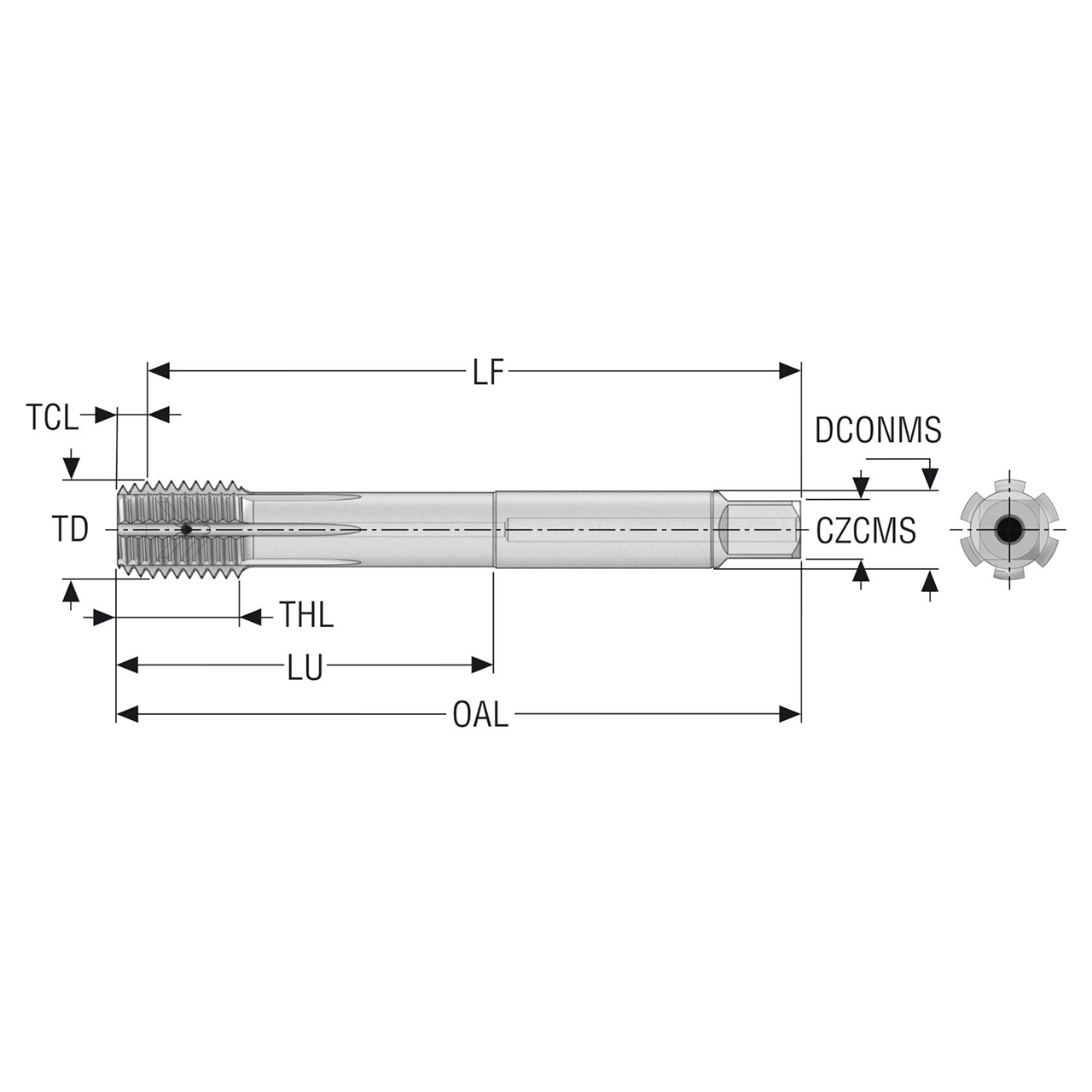

| Manufacturer Part Number | 10208930 |
| Thread Diameter (mm) | 14.00mm |
| Threading Chamfer Length (mm) | 5.88mm |
| Tap Chamfer Length (mm) | 5.88mm |
| Connection Diameter Machine Side (mm) | 11.00mm |
| Shank Diameter (mm) | 11.00mm |
| Functional Length (mm) | 104.30mm |
| Usable Length (mm) | 81.00mm |
| Overall Length (mm) | 110.00mm |
| Thread Length (mm) | 20.00mm |
| Thread Diameter Size | M14 |
| Recommended Premachined Hole Diameter (mm) | 13.10mm |
| Connection Size Code | 11.00x9.00 |
| Connection Size Code Machine Side | 11.00x9.00 |
| Maximum Premachined Hole Diameter (mm) | 13.10mm |
| Minimum Thread Pitch (mm) | 2.00mm |
| Maximum Thread Pitch (mm) | 2.00mm |
| Number of Flute | 6 |
| Coolant Entry Style Code | 1 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 2 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 6HX |
| Threading Chamfer Type | C |
| Thread Form Type | M |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | T33 |
| Cutting Geometry Type Technical | Oil grooves |
| Material | HSS-E-PM |
| Coating | TiCN |
| Product Type | Thread Forming Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Thread Size:
M14
Number of Flutes:
6
Finish/Coating:
TiCN
Material:
HSS-E-PM
Thread Standard:
M
interval quantity:
1
