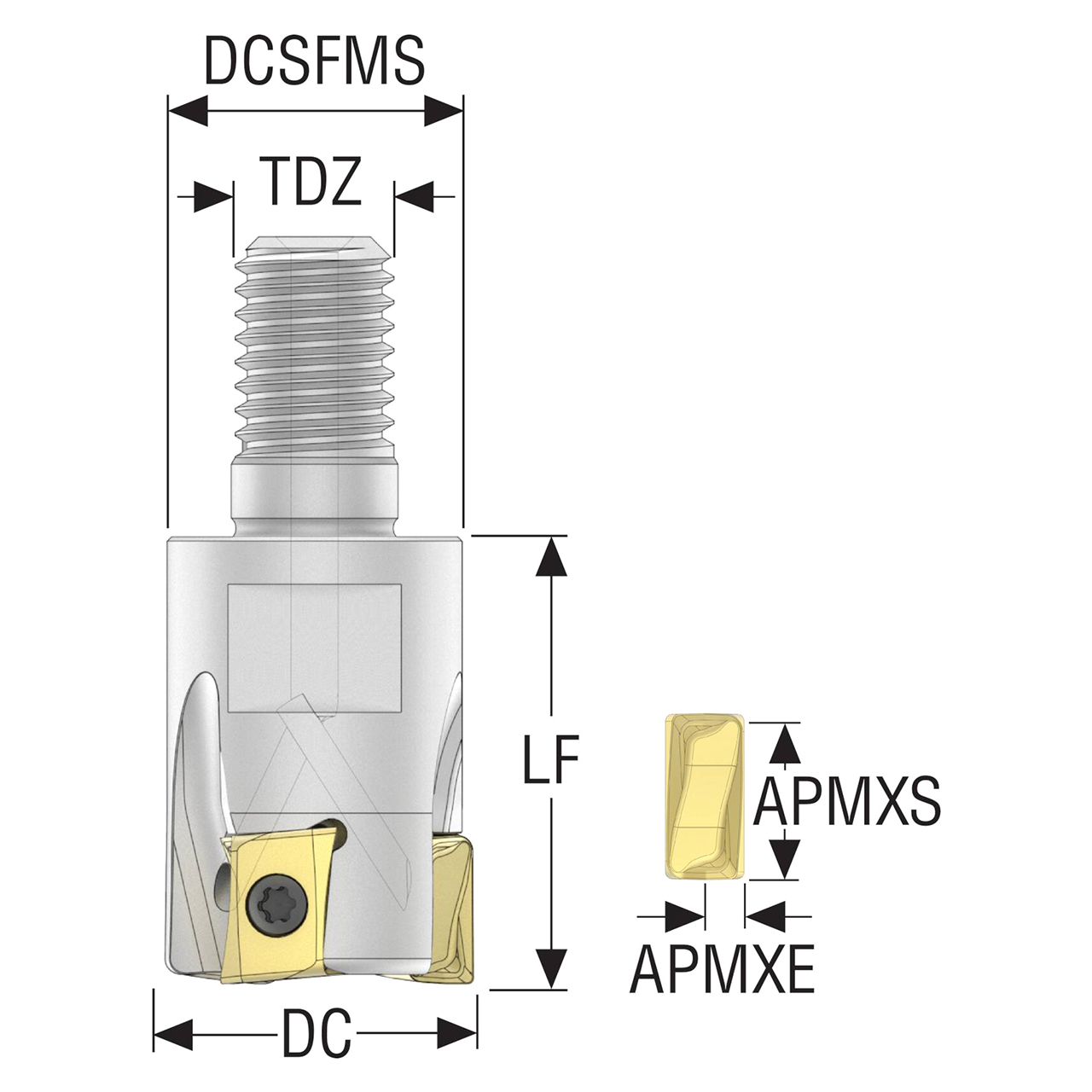

| Manufacturer Part Number | 10225144 |
| Cutting Diameter (mm) | 31.75mm |
| Contact Surface Diameter Machine Side (mm) | 30.00mm |
| Functional Length (mm) | 35.00mm |
| Maximum Depth of Cut (mm) | 8.00mm |
| Connection Mounting Torque (Nm) | 80.0 Nm |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Rake Radial Angle (Degree) | -24.5 Degree |
| Rake Orthogonal Angle (Degree) | -24.5 Degree |
| Maximum Rotational Speed (rpm) | 14600 rpm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Differential | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Pocket Seat Code of The Cutter | LOEX0804 |
| Coolant Exit Style Code | 3 |
| Cutting Item Material Type | Steel |
| Shank Type | Combimaster |

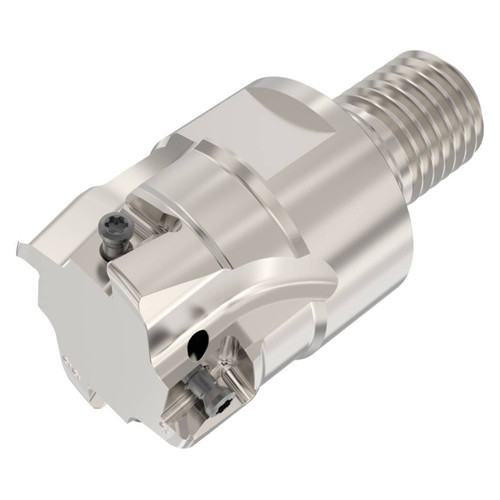

| Product Type | Indexable Square-Shoulder End Mill |
