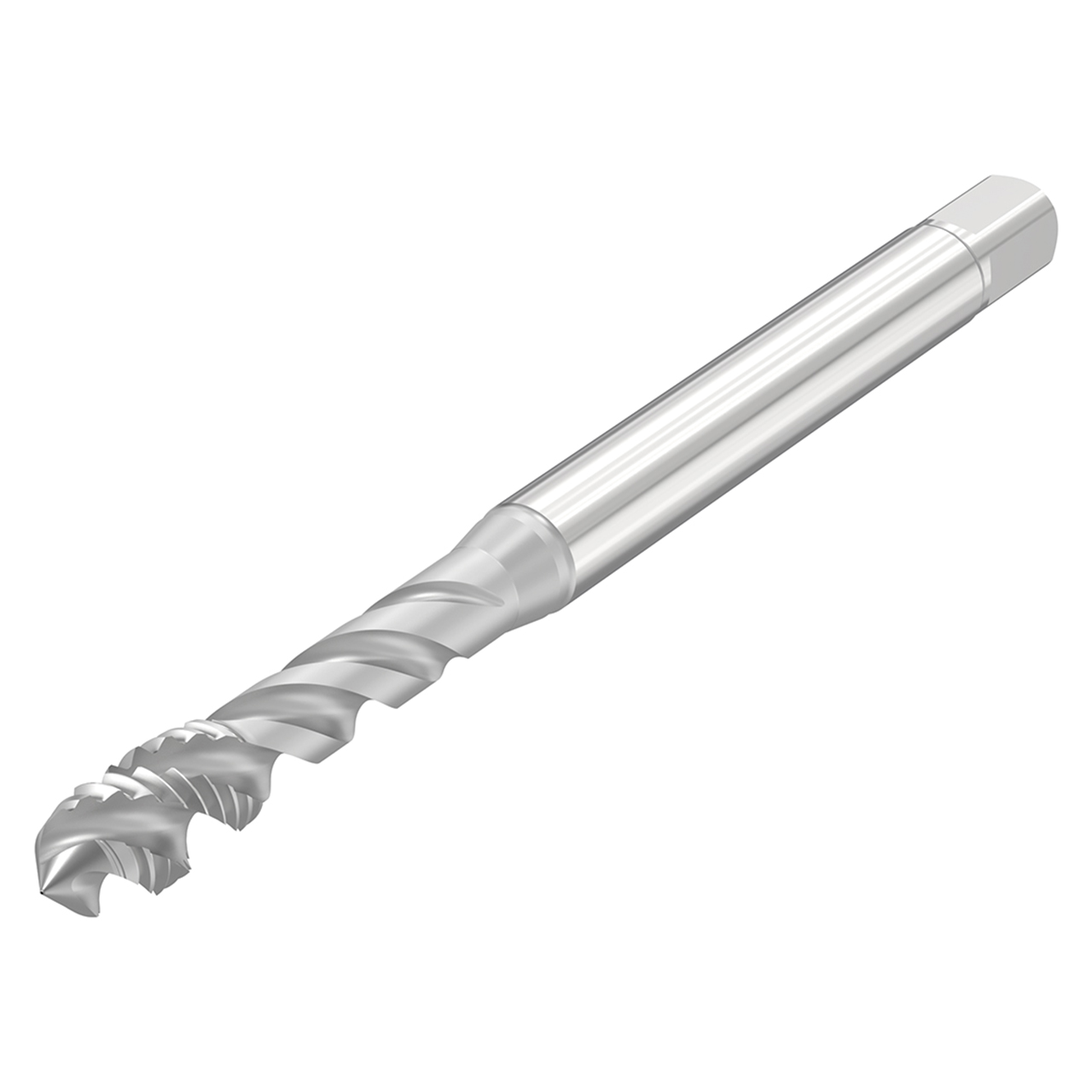

Product Specifications
| Manufacturer Part Number | 10309434 |
| Machine Side Connection Diameter (Decimal Inch) | 0.158" |
| Shank Diameter (Decimal Inch) | 0.158" |
| Functional length (Decimal Inch) | 2.134" |
| Usable Length (Decimal Inch) | 0.787" |
| Overall Length (Decimal Inch) | 2.260" |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.112" |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.114" |
| Tap Chamfer Length (Decimal Inch) | 0.076" |
| Thread Diameter (Decimal Inch) | 0.138" |
| Thread Diameter Size | UNC 6 - 32 |
| Threading Chamfer Length (Decimal Inch) | 0.076" |
| Thread Length (Decimal Inch) | 0.236" |
| Minimum Threads per Inch (TPI) | 32.00 TPI |
| Maximum Threads per Inch (TPI) | 32.00 TPI |
| Threading Chamfer Type | C |
| Thread Form Type | UNC |
| Connection Size Code | 4.00 x 3.00 |
| Machine Side Connection Size Code | 4.00 x 3.00 |
| Number of Flutes | 3 |
| Basic Standard Group | DIN371 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 2B |
| Helix Angle (Degree) | 40 Degree |
| Cutting Direction | Right Hand |
| Material | High Speed Steel-E-PM |
| Product Type | Spiral Flute Tap |
