Product Specifications
| Manufacturer Part Number | 10309761 |
| Machine Side Connection Diameter (Decimal Inch) | 0.866" |
| Shank Diameter (Decimal Inch) | 0.866" |
| Functional length (Decimal Inch) | 6.724" |
| Usable Length (Decimal Inch) | 4.528" |
| Overall Length (Decimal Inch) | 7.087" |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.984" |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.998" |
| Tap Chamfer Length (Decimal Inch) | 0.361" |
| Thread Diameter (Decimal Inch) | 1.125" |
| Thread Diameter Size | UNC 11/8 - 7 |
| Threading Chamfer Length (Decimal Inch) | 0.361" |
| Thread Length (Decimal Inch) | 1.457" |
| Minimum Threads per Inch (TPI) | 7.00 TPI |
| Maximum Threads per Inch (TPI) | 7.00 TPI |
| Threading Chamfer Type | C |
| Thread Form Type | UNC |
| Connection Size Code | 22.00 x 18.00 |
| Machine Side Connection Size Code | 22.00 x 18.00 |
| Number of Flutes | 4 |
| Basic Standard Group | DIN376 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 2B |
| Helix Angle (Degree) | 40 Degree |
| Cutting Direction | Right Hand |
| Material | High Speed Steel-E |

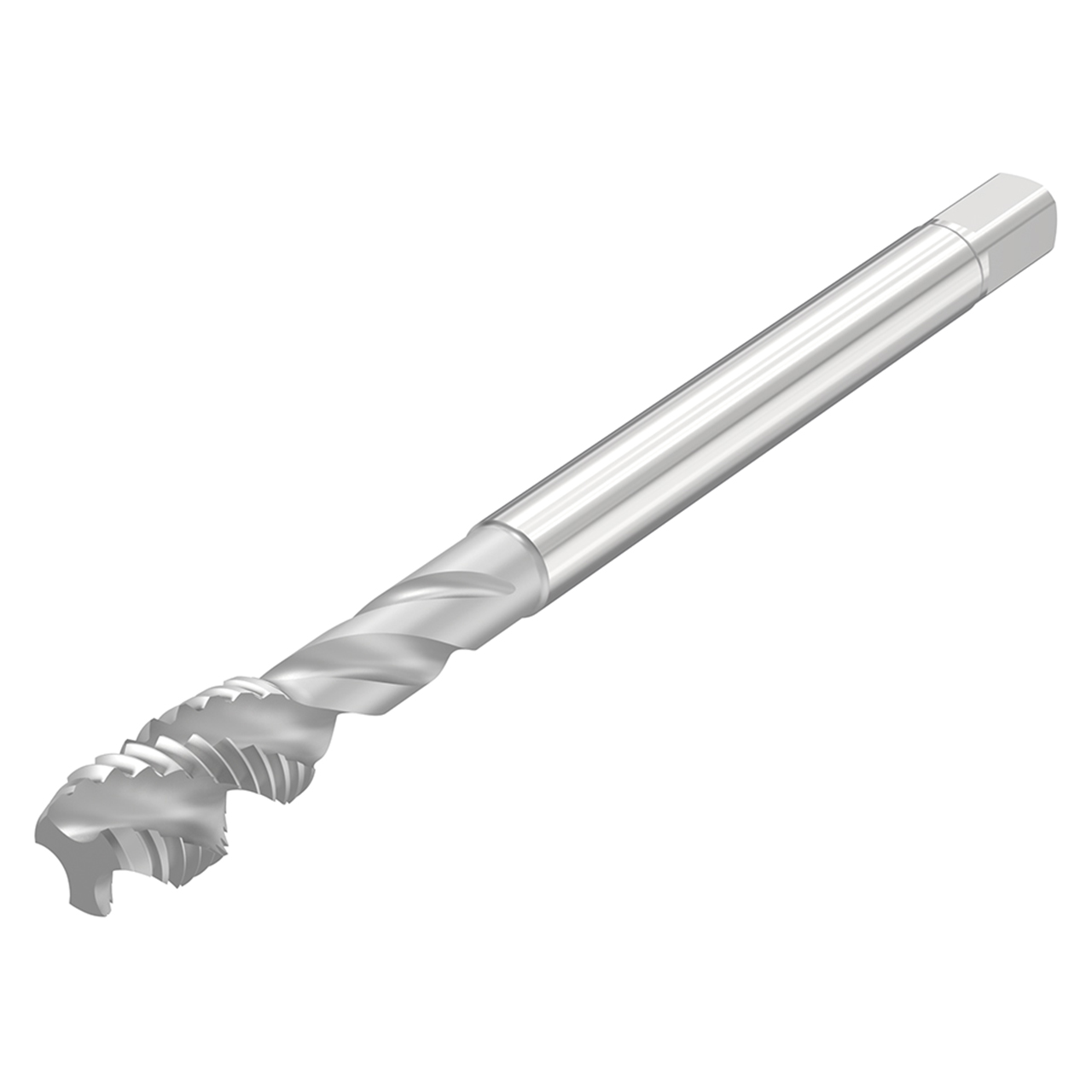

| Product Type | Spiral Flute Tap |
