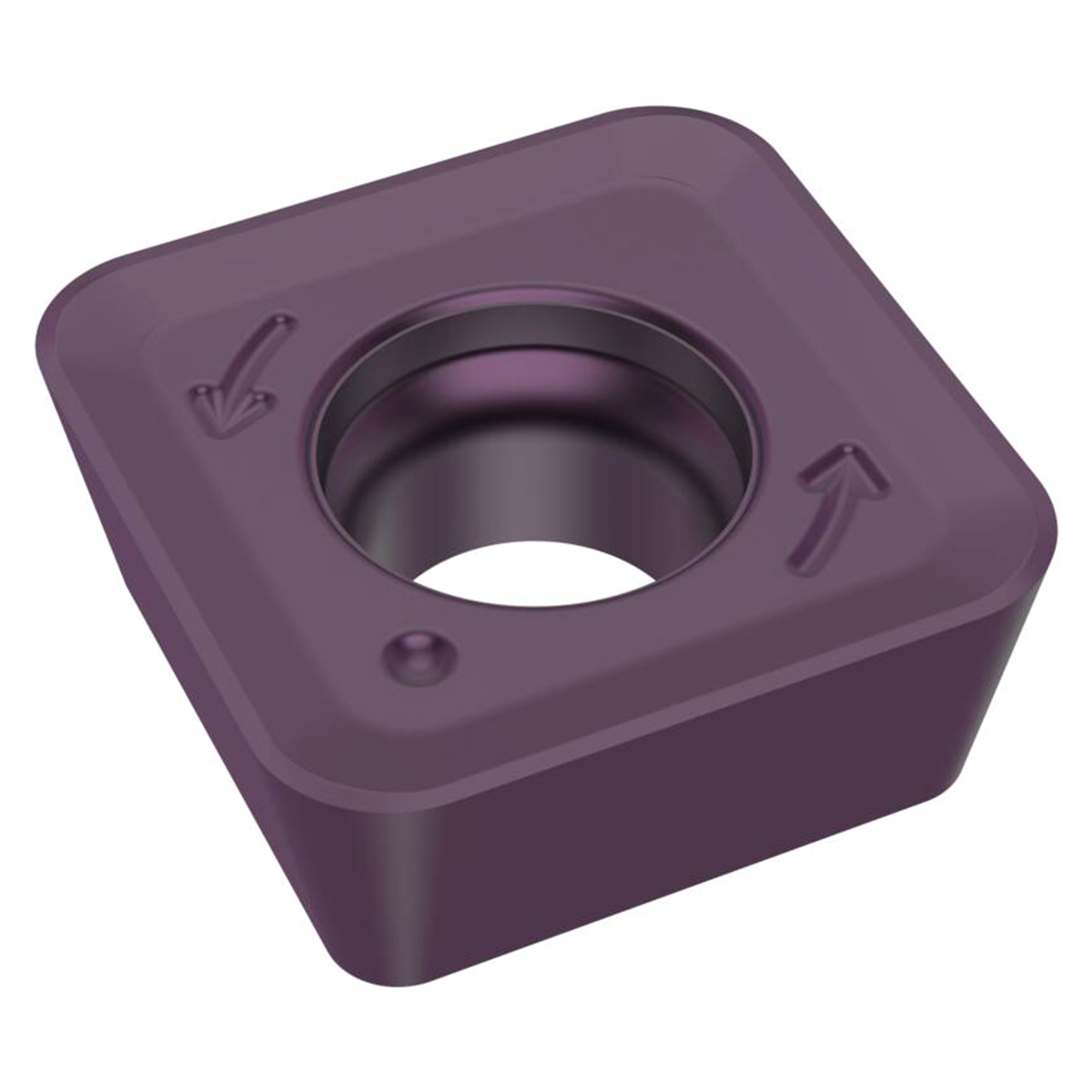

| Manufacturer Part Number | 10321793 |
| Inscribed Circle Diameter (Decimal Inch) | 0.394" |
| Cutting Edge Length (Decimal Inch) | 0.394" |
| Corner Radius (Decimal Inch) | 0.067" |
| Insert Thickness (Decimal Inch) | 0.156" |
| Insert Size and Shape | SPKT10T317 |
| Cutting Edge Count | 4 |
| Cutting Geometry Type Technical | M10 |
| Grade | MP2051 |
| Grade type | Carbide PVD |
| Insert Seat Size Code | 10 |
| Insert Hand | Neutral |
| Insert Rake Angle (Degree) | 13 Degree |
| Clearance Angle (Degree) | 11 Degree |
| Coating | PVD |
| Material | Carbide |
| Product Type | Milling Insert |
