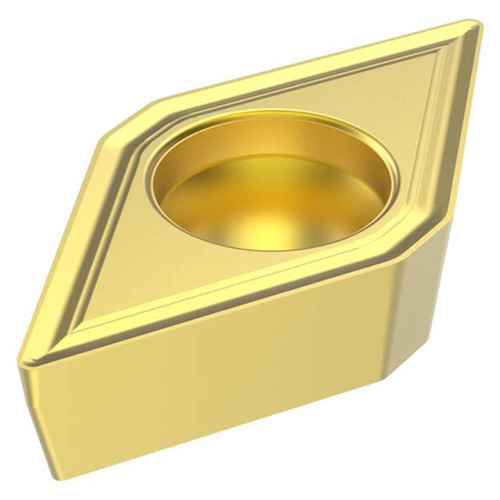

| Manufacturer Part Number | 74005403 |
| Inscribed Circle Diameter (Decimal Inch) | 0.500" |
| Inscribed Circle Diameter (mm) | 12.70mm |
| Fixing Hole Diameter (Decimal Inch) | 0.221" |
| Fixing Hole Diameter (mm) | 5.60mm |
| Corner Radius (Decimal Inch) | 0.032" |
| Corner Radius (mm) | 0.80mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.579" |
| Cutting Edge Effective Length (mm) | 14.70mm |
| Theoretical Cutting Edge Length (Decimal Inch) | 0.610" |
| Theoretical Cutting Edge Length (mm) | 15.50mm |
| Insert Thickness (Decimal Inch) | 0.187" |
| Insert Thickness (mm) | 4.76mm |
| Clearance Angle Major (Degree) | 7 Degree |
| Cutting Edge Count | 2 |
| Insert Size And Shape | DC1504 |
| Insert Included Angle (Degree) | 55 Degree |
| Material | Carbide |
| Insert Hand | Neutral |
| Insert Shape Code | D |
| Product Type | Turning Insert |
