Product Specifications

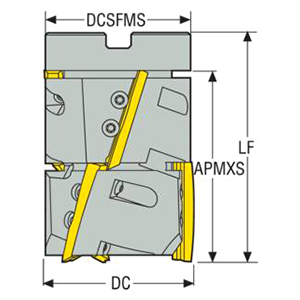

| Manufacturer Part Number | 75037122 |
| Cutting Diameter (mm) | 80.00mm |
| Connection Bore Diameter (mm) | 32.00mm |
| Contact Surface Diameter Machine Side (mm) | 75.00mm |
| Functional Length (mm) | 120.00mm |
| Maximum Depth of Cut (mm) | 90.00mm |
| Depth of Key Way (mm) | 8.00mm |
| Keyway Width (mm) | 14.40mm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Super close |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Flute Helix Hand | Right Hand |
| Axial Rake Angle (Degree) | 18 Degree |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Number of Flute | 3 |
| Maximum Rotational Speed (rpm) | 4400 rpm |
| Insert Shape Code | X |
| Shank Type | Arbor |

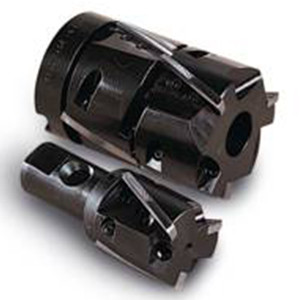

| Product Type | Indexable Square Shoulder Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Cutting Diameter (Inch):
3-3/20"
Cutting Diameter (Decimal Inch):
3.1496"
Cutting Diameter (mm):
80.00mm
Maximum Depth of Cut (Inch):
3-44/81"
Maximum Depth of Cut (Decimal Inch):
3.5433"
Maximum Depth of Cut (mm):
90.00mm
