| Manufacturer Part Number | 75041587 |
| Body Diameter 1 (Decimal Inch) | 1.693" |
| Body Diameter 1 (mm) | 43.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.039" |
| Minimum Connection Bore Diameter (mm) | 1.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.512" |
| Maximum Connection Bore Diameter (mm) | 13.00mm |
| Body Length (Decimal Inch) | 3.307" |
| Body Length (mm) | 84.00mm |
| Functional Length (Decimal Inch) | 4.331" |
| Functional Length (mm) | 110.00mm |
| Protruding Length (Decimal Inch) | 4.331" |
| Protruding Length (mm) | 110.00mm |
| Overall Length (Decimal Inch) | 5.591" |
| Overall Length (mm) | 142.00mm |
| Data Chip Provision | 1 |

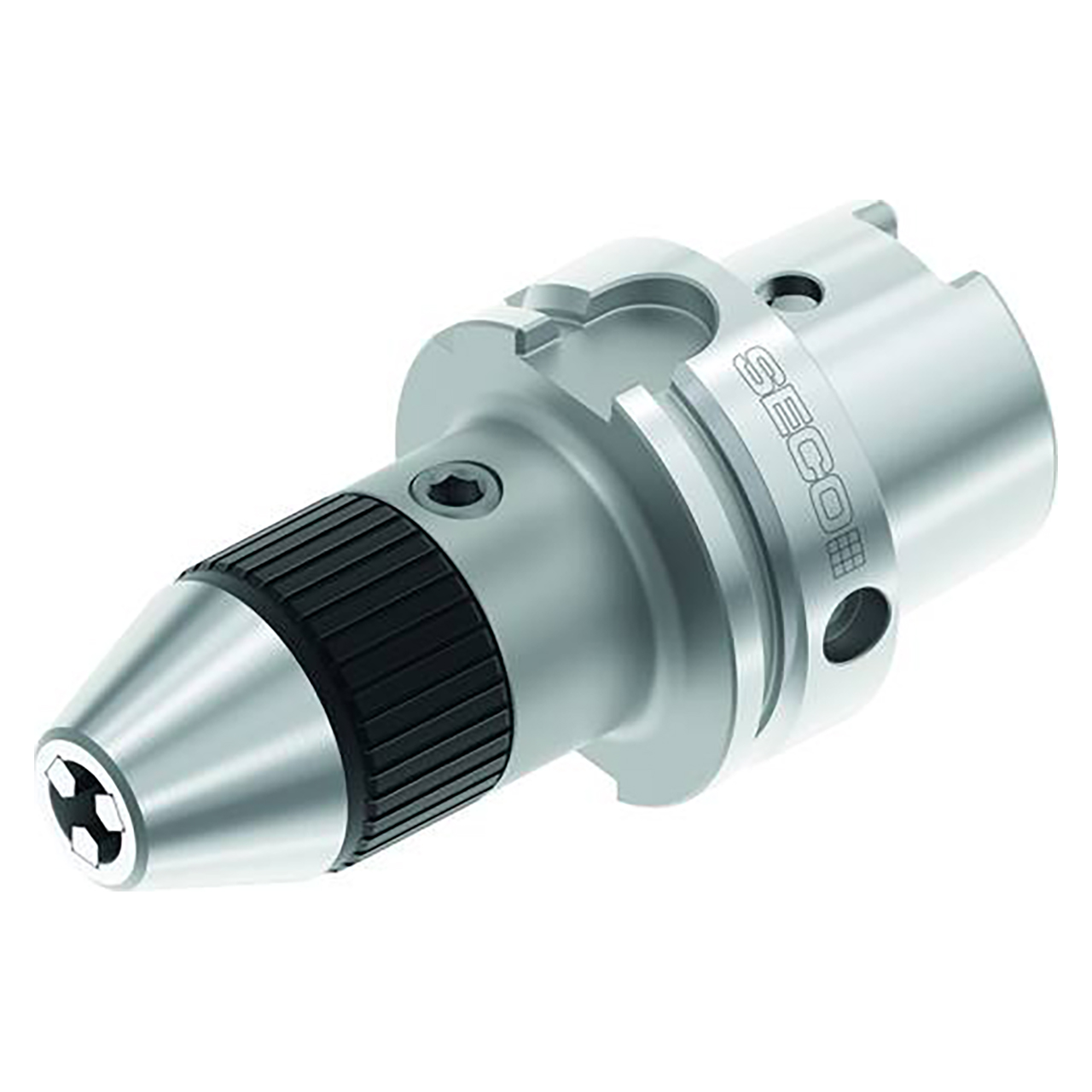

| Product Type | Drill Chuck |
