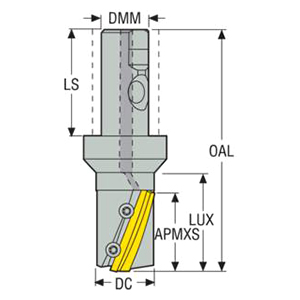

| Manufacturer Part Number | 75056423 |
| Cutting Diameter (Decimal Inch) | 2.000" |
| Cutting Diameter (mm) | 50.80mm |
| Connection Diameter Machine Side (Decimal Inch) | 1.250" |
| Connection Diameter Machine Side (mm) | 31.75mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 1.772" |
| Contact Surface Diameter Machine Side (mm) | 45.00mm |
| Shank Diameter (Decimal Inch) | 1.250" |
| Shank Diameter (mm) | 31.75mm |
| Protruding Length (Decimal Inch) | 2.284" |
| Protruding Length (mm) | 58.00mm |
| Shank Length (Decimal Inch) | 2.441" |
| Shank Length (mm) | 62.00mm |
| Overall Length (Decimal Inch) | 4.724" |
| Overall Length (mm) | 120.00mm |
| Maximum Depth of Cut (mm) | 50.00mm |
| Maximum Depth of Cut (Decimal Inch) | 1.969" |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Super close |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Flute Helix Hand | Right Hand |
| Axial Rake Angle (Degree) | 18 Degree |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Number of Flute | 3 |
| Maximum Rotational Speed (rpm) | 5500 rpm |
| Insert Shape Code | X |
| Shank Type | SecoWeldon |
| Product Type | Indexable Square Shoulder Mill |
