Product Specifications

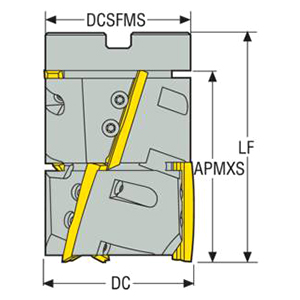

| Manufacturer Part Number | 75056424 |
| Cutting Diameter (Decimal Inch) | 3.000" |
| Cutting Diameter (mm) | 76.20mm |
| Connection Bore Diameter (Decimal Inch) | 1.000" |
| Connection Bore Diameter (mm) | 25.40mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 2.866" |
| Contact Surface Diameter Machine Side (mm) | 72.80mm |
| Functional Length (Decimal Inch) | 4.724" |
| Functional Length (mm) | 120.00mm |
| Maximum Depth of Cut (mm) | 88.90mm |
| Maximum Depth of Cut (Decimal Inch) | 3.500" |
| Depth of Key Way (Decimal Inch) | 0.221" |
| Depth of Key Way (mm) | 5.60mm |
| Keyway Width (Decimal Inch) | 0.375" |
| Keyway Width (mm) | 9.53mm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Super close |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Flute Helix Hand | Right Hand |
| Axial Rake Angle (Degree) | 18 Degree |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Number of Flute | 3 |
| Maximum Rotational Speed (rpm) | 4400 rpm |
| Insert Shape Code | X |
| Shank Type | Arbor |
| Product Type | Indexable Square Shoulder Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Cutting Diameter (Inch):
3"
Cutting Diameter (Decimal Inch):
3.0000"
Cutting Diameter (mm):
76.20mm
Maximum Depth of Cut (Inch):
3-1/2"
Maximum Depth of Cut (Decimal Inch):
3.5000"
Maximum Depth of Cut (mm):
88.90mm
interval quantity:
1
