Product Specifications

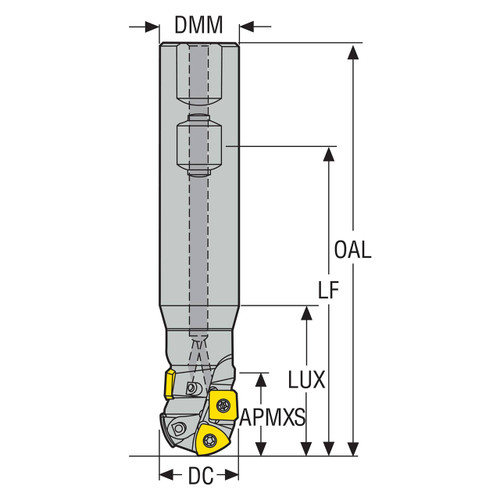

| Manufacturer Part Number | 75069119 |
| Cutting Diameter (mm) | 25.00mm |
| Connection Diameter Machine Side (mm) | 25.00mm |
| Shank Diameter (mm) | 25.00mm |
| Functional Length (mm) | 98.00mm |
| Protruding Length (mm) | 74.00mm |
| Shank Length (mm) | 82.50mm |
| Overall Length (mm) | 130.00mm |
| Number of Flute | 2 |
| Maximum Depth of Cut (mm) | 26.60mm |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Maximum Rotational Speed (rpm) | 21700 rpm |
| Sphere Angle (Degree) | 180 Degree |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Pocket Seat Code of The Cutter | 218.19-125 / SPMX0903AP |
| Coolant Exit Style Code | 3 |
| Cutting Item Material Type | Toolox 44HRc |
| Shank Type | Weldon |
| Insert Shape Code | 218.19 / S |
| Coating | AlTiN |
| Product Type | Indexable Ball Nose End Mill |
