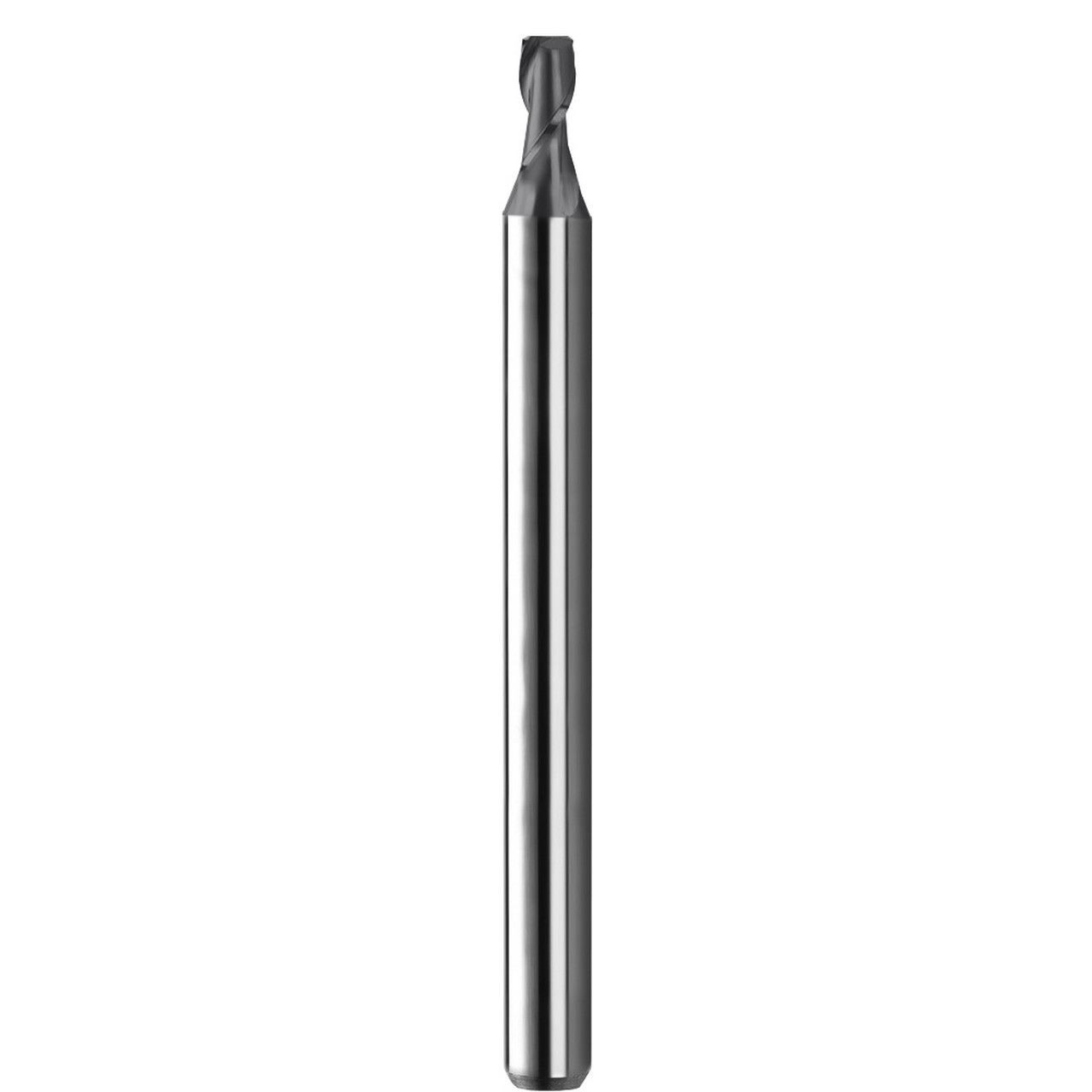

SGS 02356 | 0.9mm Diameter x 3.0mm Shank x 2.7mm LOC x 38.0mm OAL 2 Flute AlTiN Coated Square End Mill

$14.05
Brand:
SGS
Finish/Coating:
TA
Length of Cut (Inch):
7/64"
Length of Cut (Decimal Inch):
0.1063"
Length of Cut (mm):
2.7mm
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1181"
Shank Diameter (mm):
3mm
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.4961"
Overall Length (mm):
38mm
Helix Angle:
30 Degree
Cutting Direction:
RHC
SKU:
25190404
Weight:
0.01 LBS
Shipping:
Calculated at Checkout

Features:

  • Two flute design is ideal for softer alloyed, non-ferrous material applications that require slotting or involve heavy chip loads
  • Proprietary coating allows for superior chip flow, driving industry leading productivity and value, even at low spindle speeds
  • High performance carbide substrate designed specifically for Micro Tool applications
  • Broad portfolio, offering consistent lengths of cut, to ensure application demands are met
  • Advanced geometries that extend tool life, reduce chatter, cut cycle times, and improve part quality
  • All tools in stock to meet customer order requirements
  • All micro tools are manufactured in accordance with the KSPT ISO certified quality procedures

Product Specifications
Cutting Diameter (mm)0.9mm
Shank Diameter (mm)3.0mm
Length of Cut (mm)2.7mm
Overall Length (mm)38.0mm
Shank Length (mm)35.3mm
Cut of DirectionRHC
Flute TypeSpiral
Cleared Length (mm)3 mm
Helix Angle30 Degree
CoatingAlTiN
Number of Flutes2
