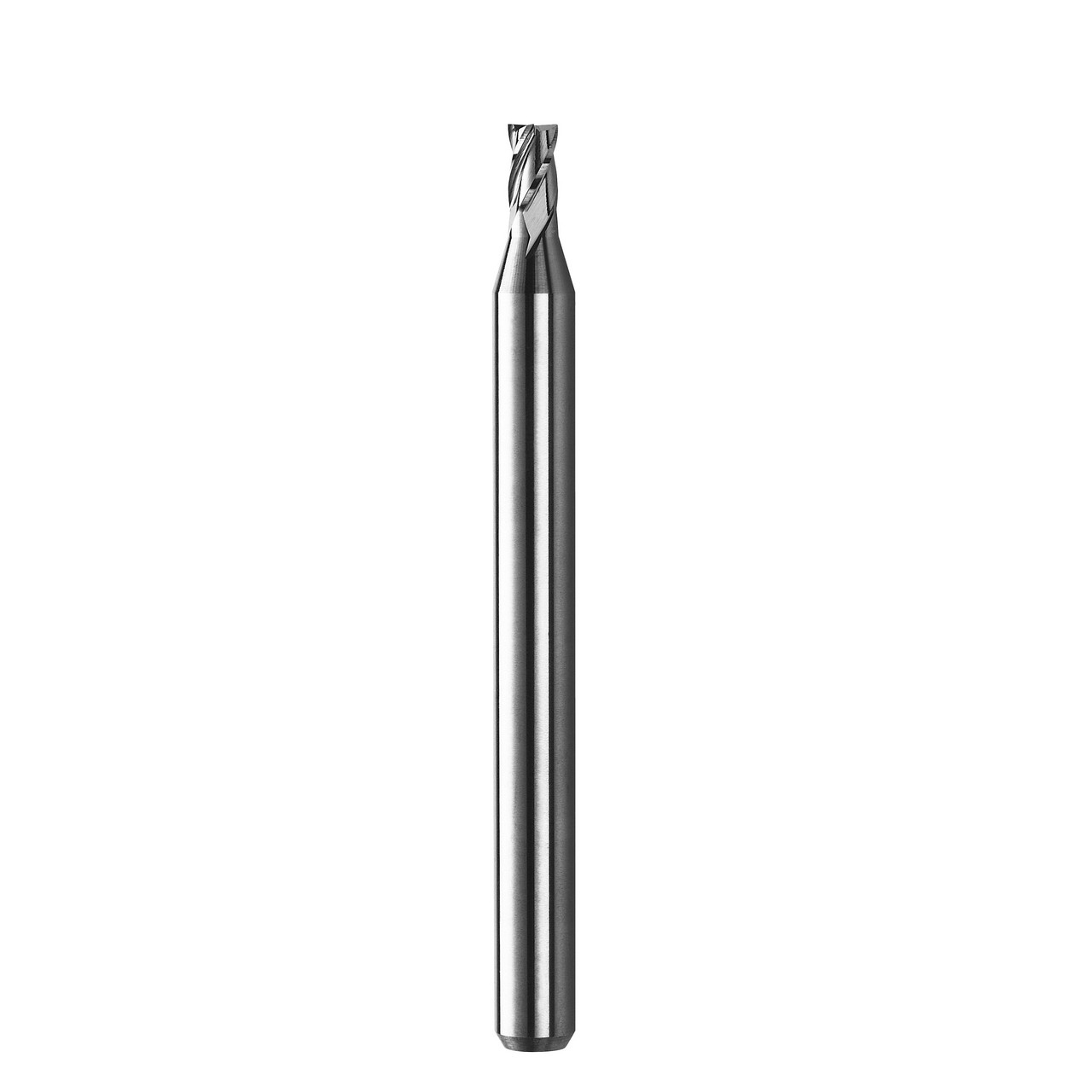

SGS 02474 | 0.045" Diameter x 0.125" Shank x 0.135" LOC x 1.500" OAL 4 Flute AlTiN Coated Square End Mill

$12.12
Brand:
SGS
Number of Flutes:
4
Length of Cut (Inch):
9/64"
Length of Cut (Decimal Inch):
0.1350"
Length of Cut (mm):
3.43mm
Finish/Coating:
TA
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
Overall Length (mm):
38.1mm
Helix Angle:
30 Degree
Cutting Direction:
RHC
SKU:
25190520
UPC:
691781024745
Weight:
0.01 LBS
Shipping:
Calculated at Checkout
Features:
  • Four flute design allows for higher feed rates and decreased deflection, improving productivity and surface finish
  • Proprietary coating allows for superior chip flow, driving industry leading productivity and value, even at low spindle speeds
  • High performance carbide substrate designed specifically for Micro Tool applications
  • Broad portfolio, offering consistent lengths of cut, to ensure application demands are met
  • Advanced geometries that extend tool life,reduce chatter, cut cycle times, and improve part quality
  • All micro tools are manufactured in accordance with the KSPT ISO certified quality procedures

Product Specifications
Cutting Diameter (Inch)0.045"
Shank Diameter (Inch)0.125"
Length of Cut (Inch)0.135"
Overall Length (Inch)1.500"
Shank Length (Inch)1.365"
Cut of DirectionRight Hand
Flute TypeSpiral
Cleared Length (Inch)0.135"
Helix Angle30 Degree
CoatingAlTiN
Number of Flutes4

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
SGS
Number of Flutes:
4
Length of Cut (Inch):
9/64"
Length of Cut (Decimal Inch):
0.1350"
Length of Cut (mm):
3.43mm
Finish/Coating:
TA
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
Overall Length (mm):
38.1mm
Helix Angle:
30 Degree
Cutting Direction:
RHC
