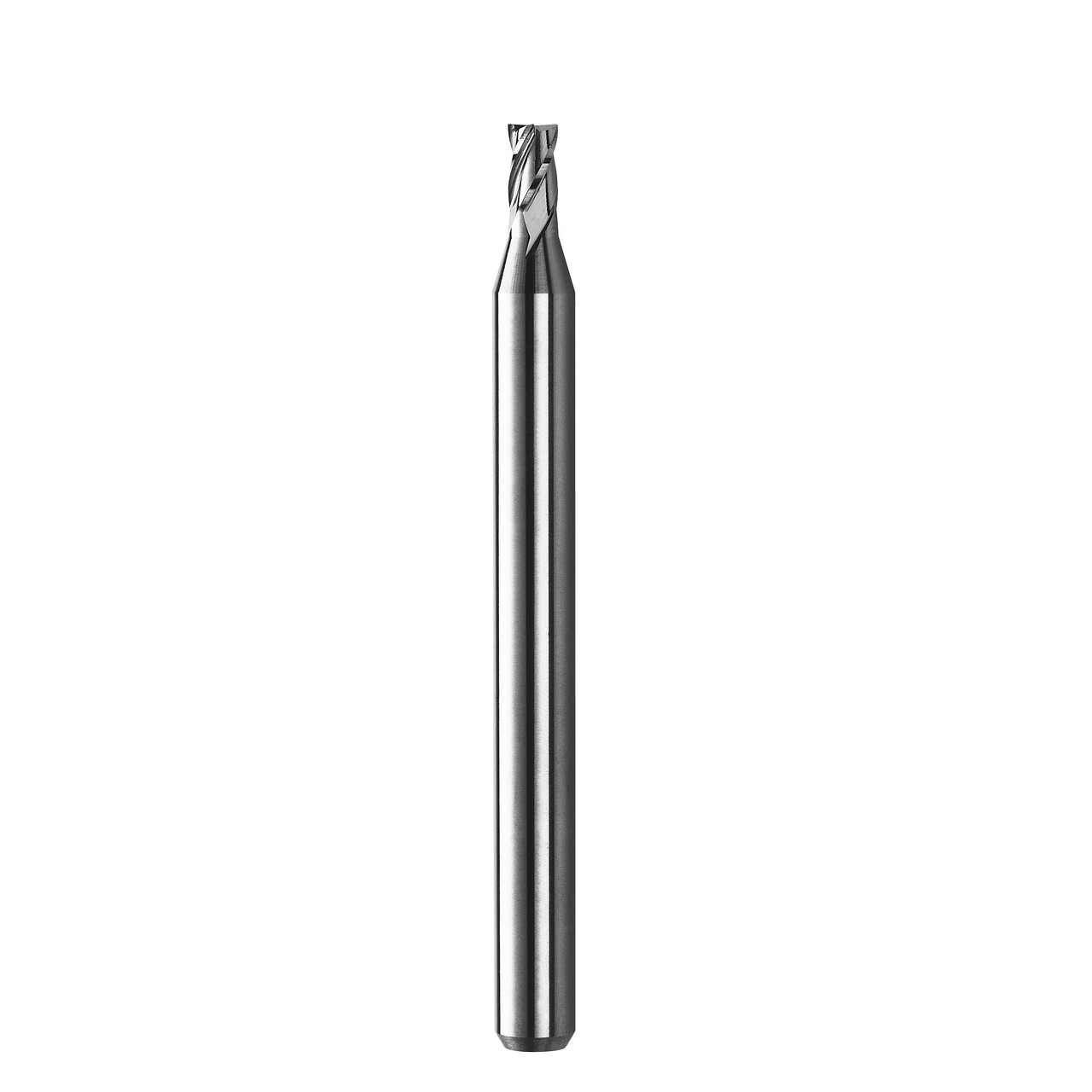

SGS 05097 | 0.8mm Diameter x 3.0mm Shank x 2.4mm LOC x 38.0mm OAL 4 Flute Uncoated Square End Mill

$12.20
Brand:
SGS
Finish/Coating:
UN
Length of Cut (Inch):
3/32"
Length of Cut (Decimal Inch):
0.0945"
Length of Cut (mm):
2.4mm
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1181"
Shank Diameter (mm):
3mm
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.4961"
Overall Length (mm):
38mm
Helix Angle:
30 Degree
Cutting Direction:
RHC
SKU:
25192454
UPC:
691781050973
Weight:
0.01 LBS
Shipping:
Calculated at Checkout

Features:

  • Four flute design allows for higher feed rates and decreased deflection, improving productivity and surface finish
  • Proprietary coating allows for superior chip flow, driving industry leading productivity and value, even at low spindle speeds
  • High performance carbide substrate designed specifically for Micro Tool applications
  • Broad portfolio, offering consistent lengths of cut, to ensure application demands are met
  • Advanced geometries that extend tool life, reduce chatter, cut cycle times, and improve part quality
  • All micro tools are manufactured in accordance with the KSPT ISO certified quality procedures

Product Specifications
Cutting Diameter (mm)0.8mm
Shank Diameter (mm)3.0mm
Length of Cut (mm)2.4mm
Overall Length (mm)38.0mm
Shank Length (mm)35.6mm
Cut of DirectionRHC
Flute TypeSpiral
Cleared Length (mm)3 mm
Helix Angle30 Degree
CoatingUncoated
Number of Flutes4
