Features
- Variable helix design improves stability, extends tool life, and improves part quality in challenging applications
- Reinforced shank maximizes rigidity, especially in applications requiring additional tool extension
- Proprietary coating allows for superior chip flow, driving industry leading productivity and value, even at low spindle speeds
- Application specific sub-micron grain carbide designed specifically for micro-tool applications
- Manufactured in accordance with KSPT ISO certified quality procedures

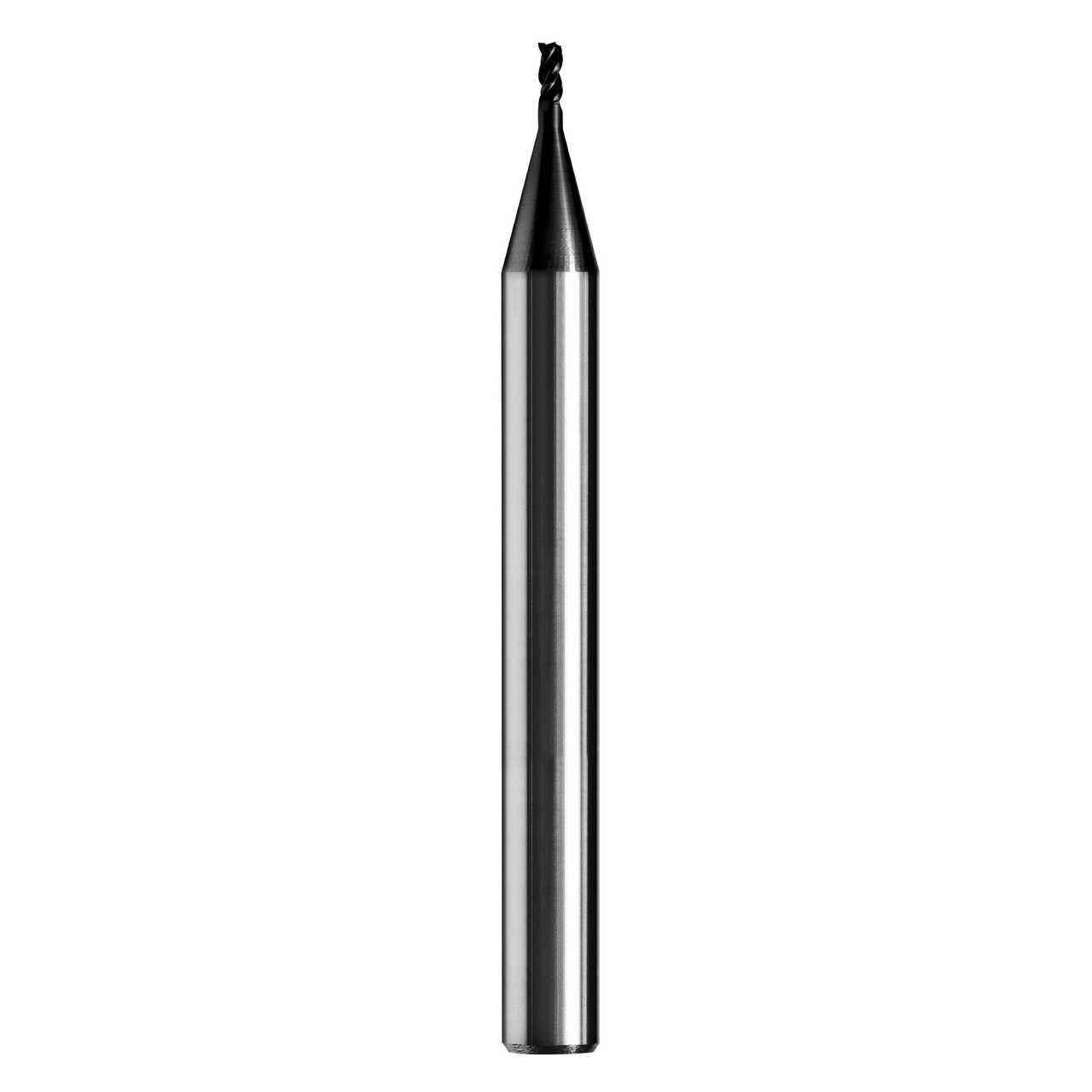

Product Specifications
| Cutting Diameter (Inch) | 1/32" |
| Shank Diameter (Inch) | 1/4" |
| Length of Cut (Inch) | 1/16" |
| Overall Length (Inch) | 2-1/2" |
| Cut of Direction | Right Hand |
| Flute Type | Spiral |
| Corner Radius (Inch) | 0.006" |
| Helix Angle | 35-45 Degree |
| Coating | AlTiN |
| Number of Flutes | 3 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
SGS
Number of Flutes:
3
End Type:
Corner Radius
Corner Radius (mm):
0.15mm
Length of Cut (Inch):
1/16"
Length of Cut (Decimal Inch):
0.0630"
Length of Cut (mm):
1.6mm
Finish/Coating:
TA
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Cutting Direction:
RHC
