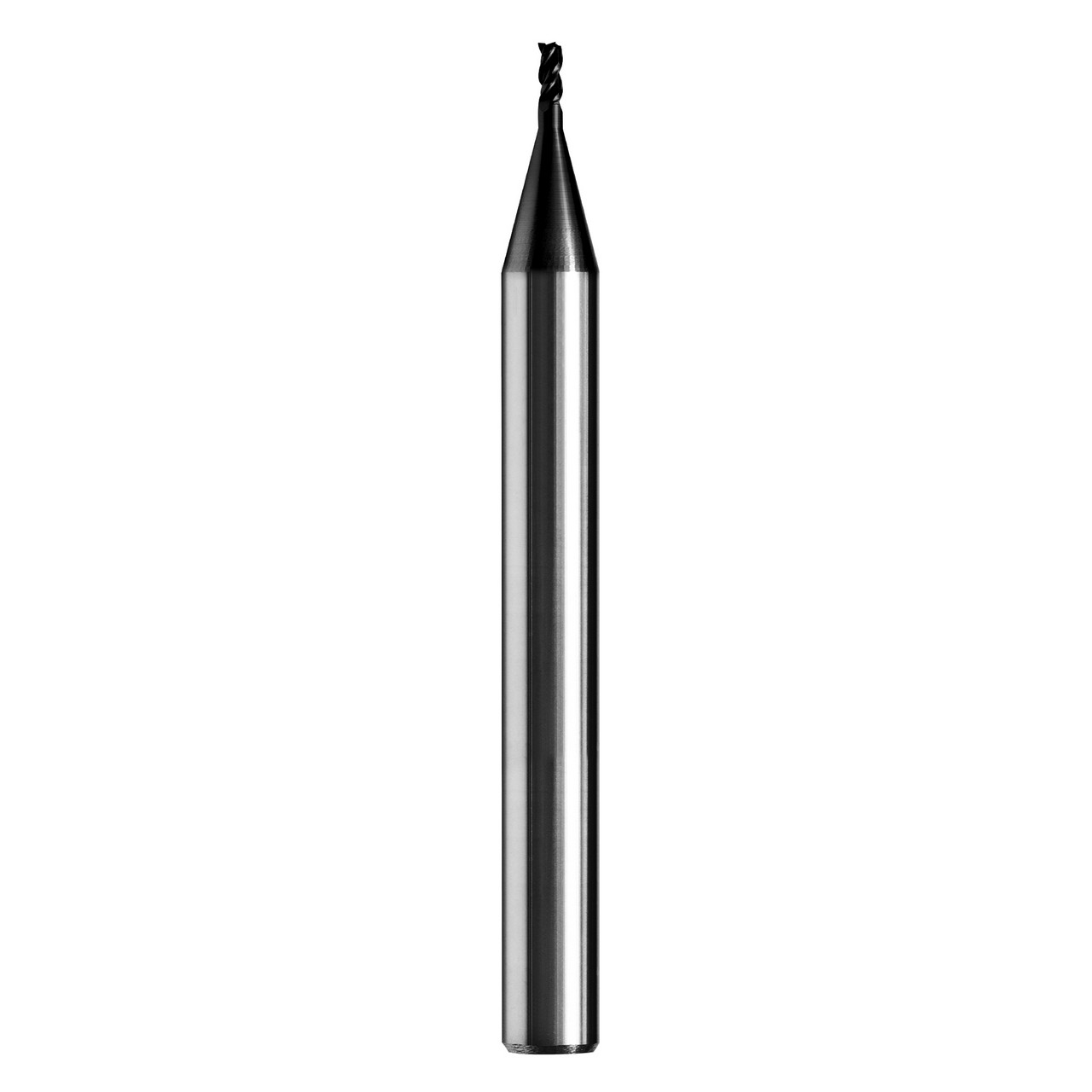

SGS 05302 | 7/64" Diameter x 1/4" Shank x 3/16" LOC x 2-1/2" OAL 3 Flute AlTiN Coated Square End Mill

$17.97
Brand:
SGS
Number of Flutes:
3
Length of Cut (Inch):
3/16"
Length of Cut (Decimal Inch):
0.1880"
Length of Cut (mm):
4.78mm
Finish/Coating:
TA
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Helix Angle:
35-45 Degree
Cutting Direction:
RHC
SKU:
25192515
Weight:
0.07 LBS
Shipping:
Calculated at Checkout

Features

  • Variable helix design improves stability, extends tool life, and improves part quality in challenging applications
  • Reinforced shank maximizes rigidity, especially in applications requiring additional tool extension
  • Proprietary coating allows for superior chip flow, driving industry leading productivity and value, even at low spindle speeds
  • Application specific sub-micron grain carbide designed specifically for micro-tool applications
  • Manufactured in accordance with KSPT ISO certified quality procedures

Product Specifications
Cutting Diameter (Inch)7/64"
Shank Diameter (Inch)1/4"
Length of Cut (Inch)3/16"
Overall Length (Inch)2-1/2"
Cut of DirectionRight Hand
Flute TypeSpiral
Reach (Inch)0.545"
Helix Angle35-45 Degree
CoatingAlTiN
Number of Flutes3

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
