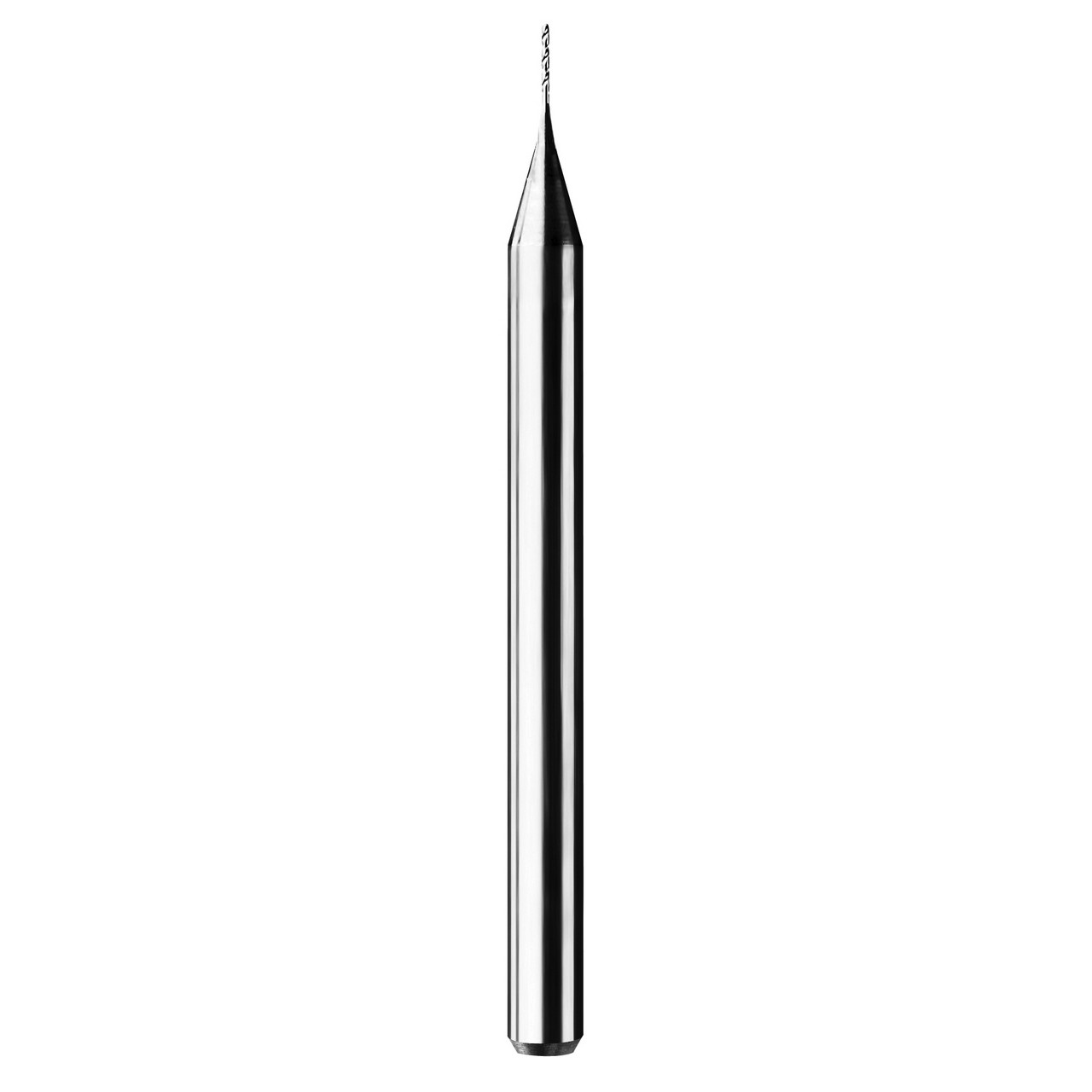

Features:
- 4-facet point design stabilizes on entry for superior hole size control and tool life (>.08mm). 2-facet point on 0,08 and smaller
- Mirror surface finishes improve chip flow as hole depth increases
- Ti-Namite A coating and uncoated options for the ultimate performance in a variety of ferrous and non-ferrous workpiece materials
- Application specific sub-micron grain carbide designed specifically for microtool applications
- Manufactured in accordance with KSPT ISO certified quality procedures
Product Specifications
| Cutting Diameter (mm) | 2.3mm |
| Shank Diameter (mm) | 3.0mm |
| Length of Cut (mm) | 10.2mm |
| Overall Length (mm) | 38.0mm |
| Cut of Direction | RHC |
| Flute Type | Spiral |
| Helix Angle | 33 Degree |
| Point Angle | 130 Degree |
| Coating | AlTiN |
| Number of Flutes | 2 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
SGS
Drill Point Angle:
130°
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1181"
Shank Diameter (mm):
3mm
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.4961"
Overall Length (mm):
38mm
Finish/Coating:
TA
