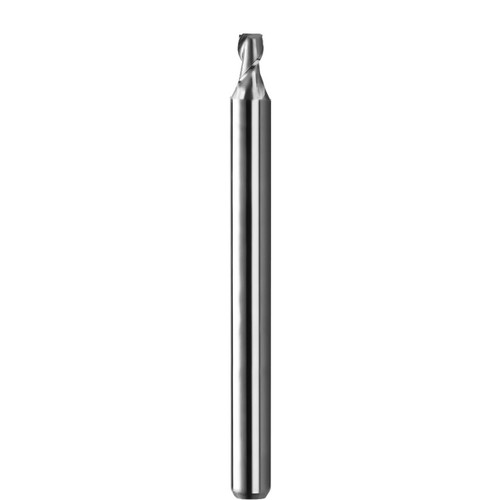

Features:
- Two flute design is ideal for softer alloyed, non-ferrous material applications that require slotting or involve heavy chip loads
- Enhanced corner geometry with tight tolerance corner radius
- Proprietary coating allows for superior chip flow, driving industry leading productivity and value, even at low spindle speeds
- High performance carbide substrate designed specifically for Micro Tool applications
- Broad portfolio, offering consistent lengths of cut, to ensure application demands are met
- Advanced geometries that extend tool life, reduce chatter, cut cycle times, and improve part quality
- All tools in stock to meet customer order requirements
- All micro tools are manufactured in accordance with the KSPT ISO certified quality procedures
Product Specifications
| Cutting Diameter (Inch) | 0.050" |
| Shank Diameter (Inch) | 0.125" |
| Length of Cut (Inch) | 0.075" |
| Overall Length (Inch) | 1.500" |
| Shank Length (Inch) | 1.425" |
| Cut of Direction | Right Hand |
| Flute Type | Spiral |
| Cleared Length (Inch) | 0.075" |
| Corner Radius (Inch) | 0.005" |
| Helix Angle | 30 Degree |
| Coating | Uncoated |
| Number of Flutes | 2 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
SGS
Number of Flutes:
2
End Type:
Corner Radius
Corner Radius (mm):
0.13mm
Length of Cut (Inch):
5/64"
Length of Cut (Decimal Inch):
0.0750"
Length of Cut (mm):
1.91mm
Finish/Coating:
UN
Shank Diameter (Inch):
1.4961"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
Overall Length (mm):
38.1mm
Cutting Direction:
RHC
