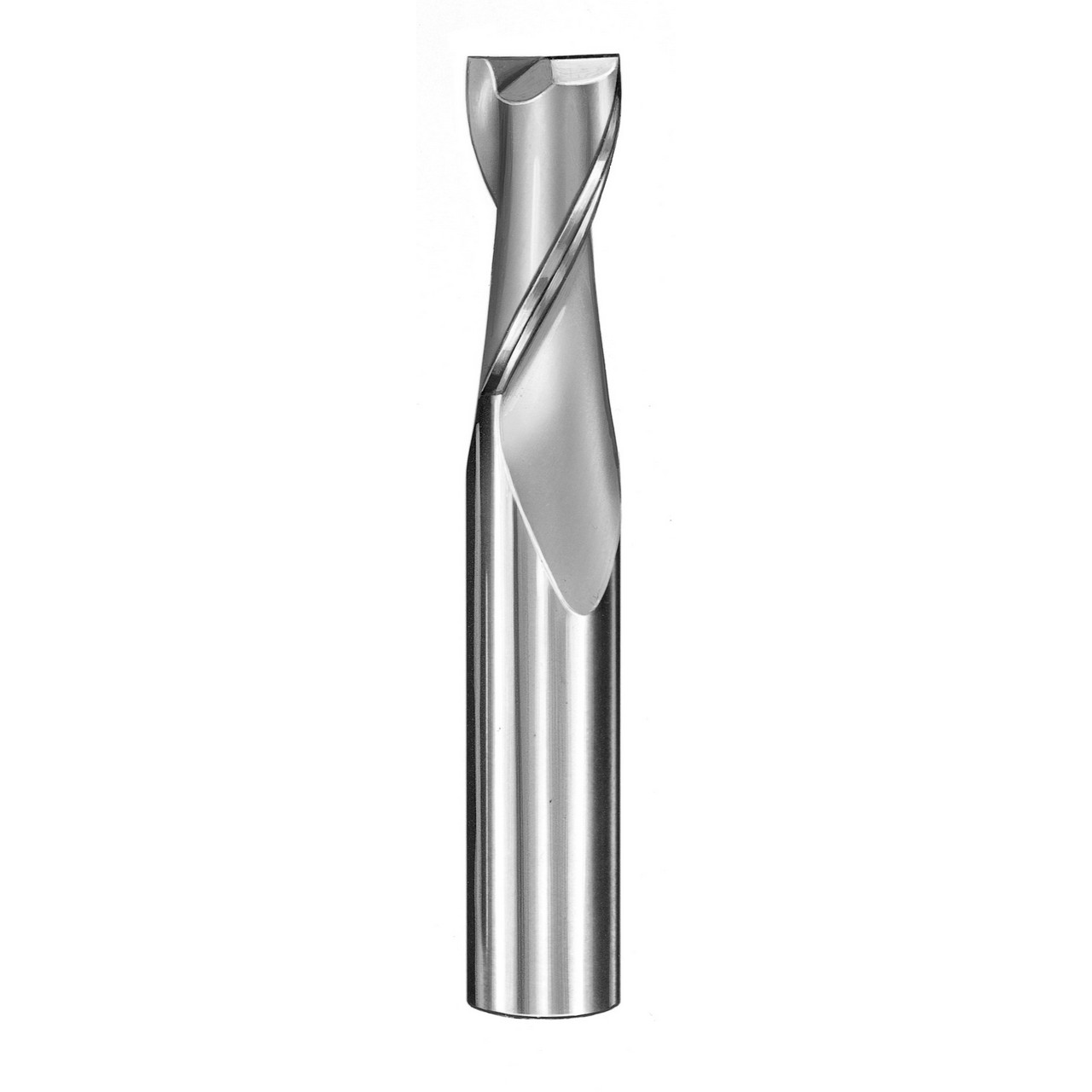

SGS 30337 | 19/64" Diameter x 1/3" Shank x 13/16" LOC x 2-1/2" OAL 2 Flute Uncoated Square End Mill

$19.51
Brand:
SGS
Number of Flutes:
2
Length of Cut (Inch):
13/16"
Length of Cut (Decimal Inch):
0.8120"
Length of Cut (mm):
20.62mm
Finish/Coating:
UN
Shank Diameter (Inch):
5/16"
Shank Diameter (Decimal Inch):
0.3125"
Shank Diameter (mm):
7.94mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Helix Angle:
30 Degree
Cutting Direction:
RHC
SKU:
25194184
UPC:
691781303376
Weight:
0.06 LBS
Shipping:
Calculated at Checkout

Product Specifications
Cutting Diameter (Inch)19/64"
Shank Diameter (Inch)1/3"
Length of Cut (Inch)13/16"
Overall Length (Inch)2-1/2"
Shank Length (Inch)1.688"
Cut of DirectionRight Hand
Flute TypeSpiral
Helix Angle30 Degree
CoatingUncoated
Number of Flutes2
