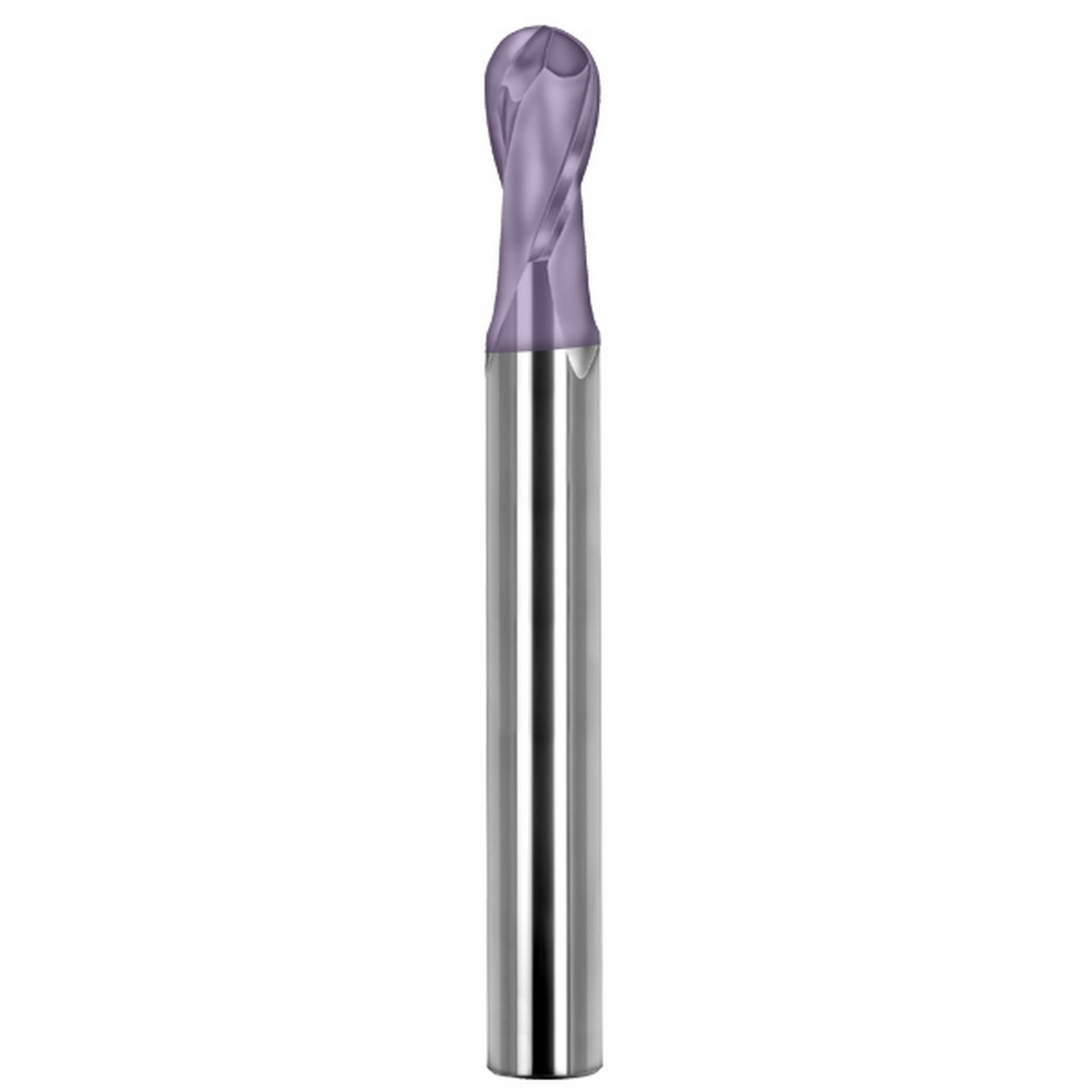

Product Specifications
| Cutting Diameter (Inch) | 3/4" |
| Shank Diameter (Inch) | 3/4" |
| Length of Cut (Inch) | 1-3/8" |
| Overall Length (Inch) | 5-1/4" |
| Shank Length (Inch) | 3.875" |
| Cut of Direction | Right Hand |
| Flute Type | Spiral |
| Helix Angle | 25 Degree |
| Coating | TiCN |
| Number of Flutes | 2 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
SGS
Number of Flutes:
2
Length of Cut (Inch):
1-3/8"
Length of Cut (Decimal Inch):
1.3750"
Length of Cut (mm):
34.93mm
Overall Length (Inch):
5-1/4"
Overall Length (Decimal Inch):
5.2500"
Overall Length (mm):
133.35mm
Shank Diameter (Inch):
3/4"
Shank Diameter (Decimal Inch):
0.7500"
Shank Diameter (mm):
19.05mm
Finish/Coating:
TC
Cutting Direction:
RHC
Helix Angle (Degree):
25 Degree
