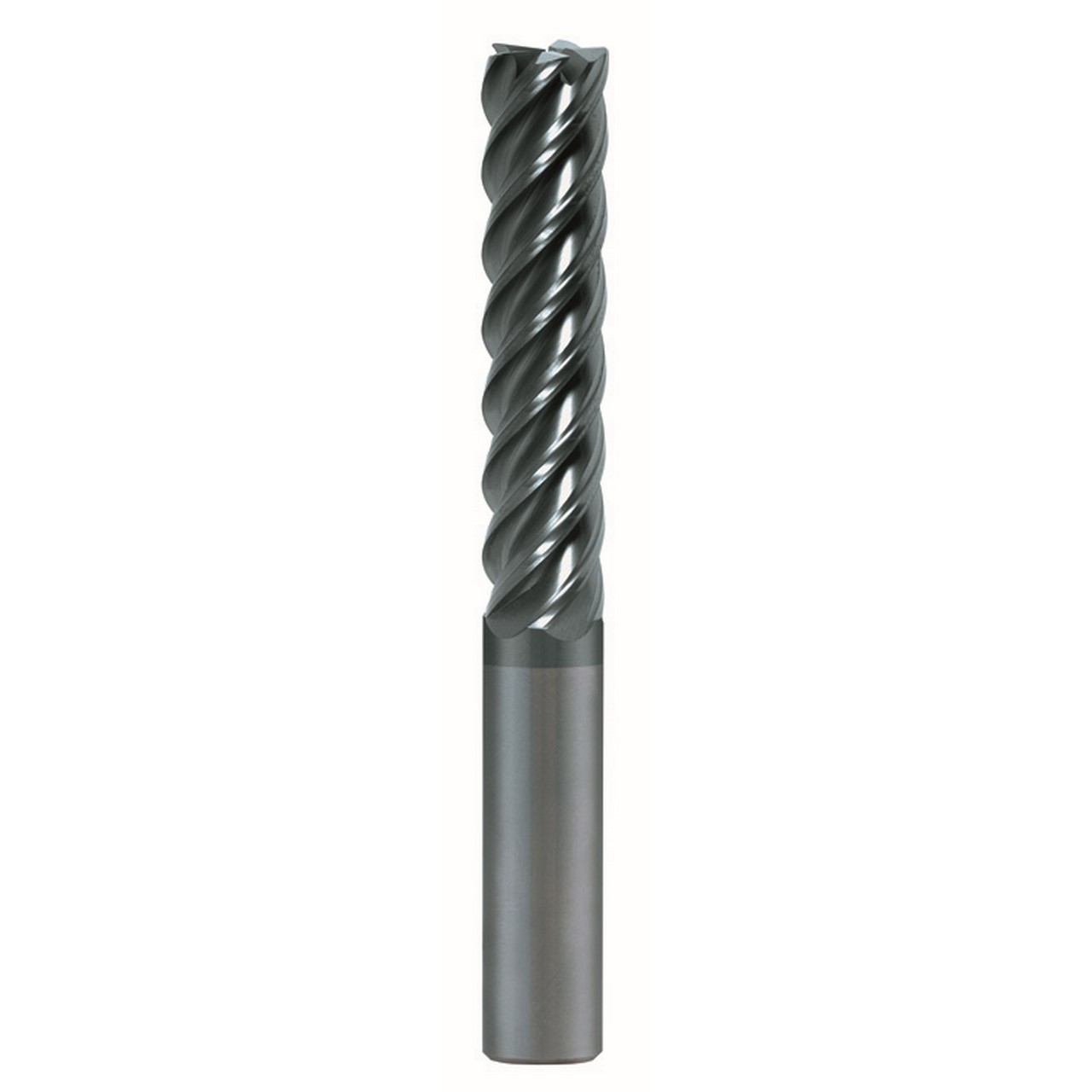

SGS 32658 | 7/32" Diameter x 1/4" Shank x 3/4" LOC x 2-1/2" OAL 5 Flute AlTiN Coated Square End Mill

$33.04
Brand:
SGS
Number of Flutes:
5
Length of Cut (Inch):
3/4"
Length of Cut (Decimal Inch):
0.7500"
Length of Cut (mm):
19.05mm
Finish/Coating:
TA
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Helix Angle:
45 Degree
Cutting Direction:
RHC
SKU:
25195503
UPC:
691781326580
Weight:
0.30 LBS
Shipping:
Calculated at Checkout

Features:

  • Unequal indexing, high helix and an ideal rake and relief combination for unmatched finishing capability
  • The choice when peak finish quality is the requirement
  • Enhanced corner geometry with tight tolerance corner radius
  • Recommended for materials ≤ 45 HRC (≤ 420 BHN)

Product Specifications
Cutting Diameter (Inch)7/32"
Shank Diameter (Inch)1/4"
Length of Cut (Inch)3/4"
Overall Length (Inch)2-1/2"
Shank Length (Inch)1.75"
Cut of DirectionRight Hand
Flute TypeSpiral
Helix Angle45 Degree
CoatingAlTiN
Number of Flutes5
