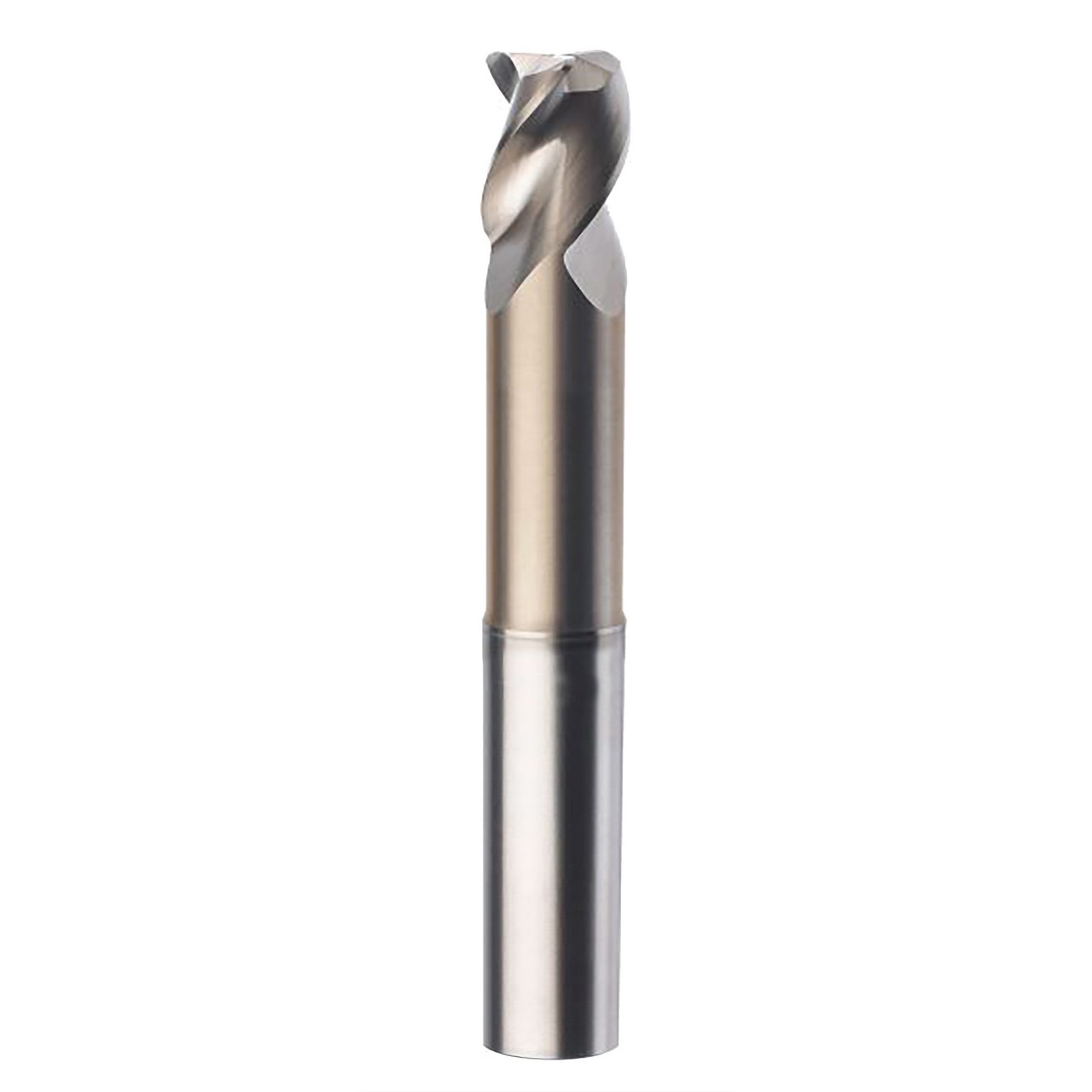

SGS 32816 | 3/16" Diameter x 3/16" Shank x 7/32" LOC x 3" OAL 3 Flute TiB2 Coated Corner Radius End Mill

$31.76
Brand:
SGS
Number of Flutes:
3
End Type:
Corner Radius
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0100"
Corner Radius (mm):
0.25mm
Length of Cut (Inch):
7/32"
Length of Cut (Decimal Inch):
0.2188"
Length of Cut (mm):
5.56mm
Finish/Coating:
TB
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Shank Diameter (mm):
4.76mm
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Overall Length (mm):
76.2mm
Cutting Direction:
RHC
SKU:
25195642
Weight:
0.05 LBS
Shipping:
Calculated at Checkout

Product Specifications
Cutting Diameter (Inch)3/16"
Shank Diameter (Inch)3/16"
Length of Cut (Inch)7/32"
Overall Length (Inch)3"
Shank Length (Inch)2.7812"
Cut of DirectionRight Hand
Flute TypeSpiral
Reach (Inch)0.5"
Corner Radius (Inch)0.01"
Helix Angle38 Degree
CoatingTiB2
Number of Flutes3
