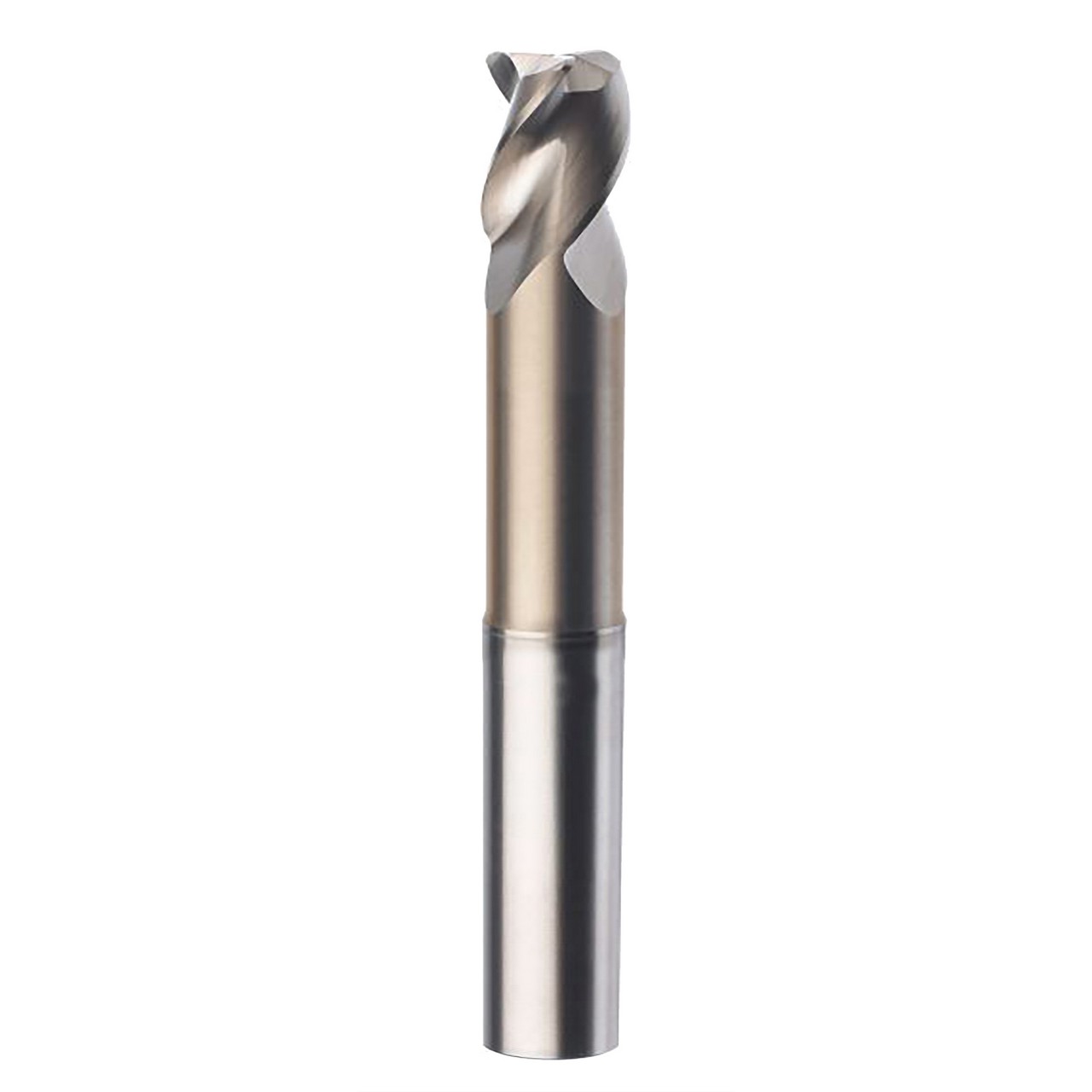

SGS 32851 | 5/8" Diameter x 5/8" Shank x 3/4" LOC x 6" OAL 3 Flute TiB2 Coated Corner Radius End Mill

$211.70
Brand:
SGS
Number of Flutes:
3
End Type:
Corner Radius
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0300"
Corner Radius (mm):
0.76mm
Length of Cut (Inch):
3/4"
Length of Cut (Decimal Inch):
0.7500"
Length of Cut (mm):
19.05mm
Finish/Coating:
TB
Shank Diameter (Inch):
5/8"
Shank Diameter (Decimal Inch):
0.6250"
Shank Diameter (mm):
15.88mm
Overall Length (Inch):
6"
Overall Length (Decimal Inch):
6.0000"
Overall Length (mm):
152.4mm
Cutting Direction:
RHC
SKU:
25195677
Weight:
0.91 LBS
Shipping:
Free Shipping

Product Specifications
Cutting Diameter (Inch)5/8"
Shank Diameter (Inch)5/8"
Length of Cut (Inch)3/4"
Overall Length (Inch)6"
Shank Length (Inch)5.25"
Cut of DirectionRight Hand
Flute TypeSpiral
Reach (Inch)3.375"
Corner Radius (Inch)0.03"
Helix Angle38 Degree
CoatingTiB2
Number of Flutes3

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
SGS
Number of Flutes:
3
End Type:
Corner Radius
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0300"
Corner Radius (mm):
0.76mm
Length of Cut (Inch):
3/4"
Length of Cut (Decimal Inch):
0.7500"
Length of Cut (mm):
19.05mm
Finish/Coating:
TB
Shank Diameter (Inch):
5/8"
Shank Diameter (Decimal Inch):
0.6250"
Shank Diameter (mm):
15.88mm
Overall Length (Inch):
6"
Overall Length (Decimal Inch):
6.0000"
Overall Length (mm):
152.4mm
Cutting Direction:
RHC
