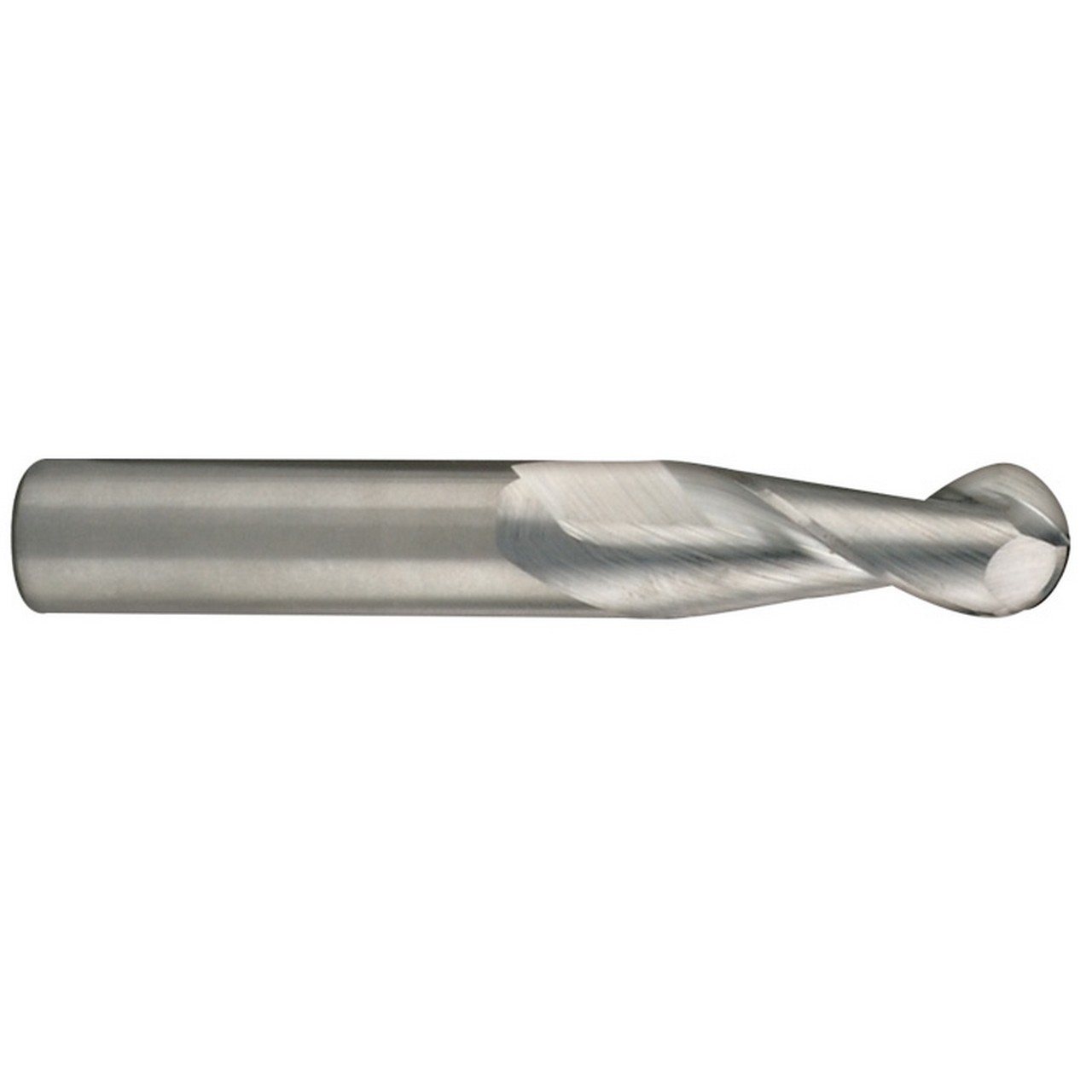

SGS 34638 | 1.000" Diameter x 1.000" Shank x 2.000" LOC x 4.500" OAL 2 Flute Uncoated Ball End Mill

$271.95
Brand:
SGS
Number of Flutes:
2
Length of Cut (Inch):
2"
Length of Cut (Decimal Inch):
2.0000"
Length of Cut (mm):
50.8mm
Overall Length (Inch):
4-1/2"
Overall Length (Decimal Inch):
4.5000"
Overall Length (mm):
114.3mm
Shank Diameter (Inch):
1"
Shank Diameter (Decimal Inch):
1.0000"
Shank Diameter (mm):
25.4mm
Finish/Coating:
UN
Cutting Direction:
RHC
Helix Angle (Degree):
35 Degree
SKU:
25196030
UPC:
691781346380
Weight:
1.38 LBS
Shipping:
Free Shipping

Features:

  • Circular land reduces edge aggressiveness for varied speed and feed rates
  • 2 Flutes effectively manage the large size and volume of chips produced during the aggressive machining process
  • Excellent balance at high speeds and aggressive plunging capability
  • Ball nose design ideal for finishing operations in complex workpieces
  • Recommended for materials ≤ 150 BHN (≤ 7 HRC)

Product Specifications
Cutting Diameter (Inch)1.000"
Shank Diameter (Inch)1.000"
Length of Cut (Inch)2.000"
Overall Length (Inch)4.500"
Shank Length (Inch)2.500"
Cut of DirectionRight Hand
Flute TypeSpiral
Helix Angle35 Degree
CoatingUncoated
Number of Flutes2
