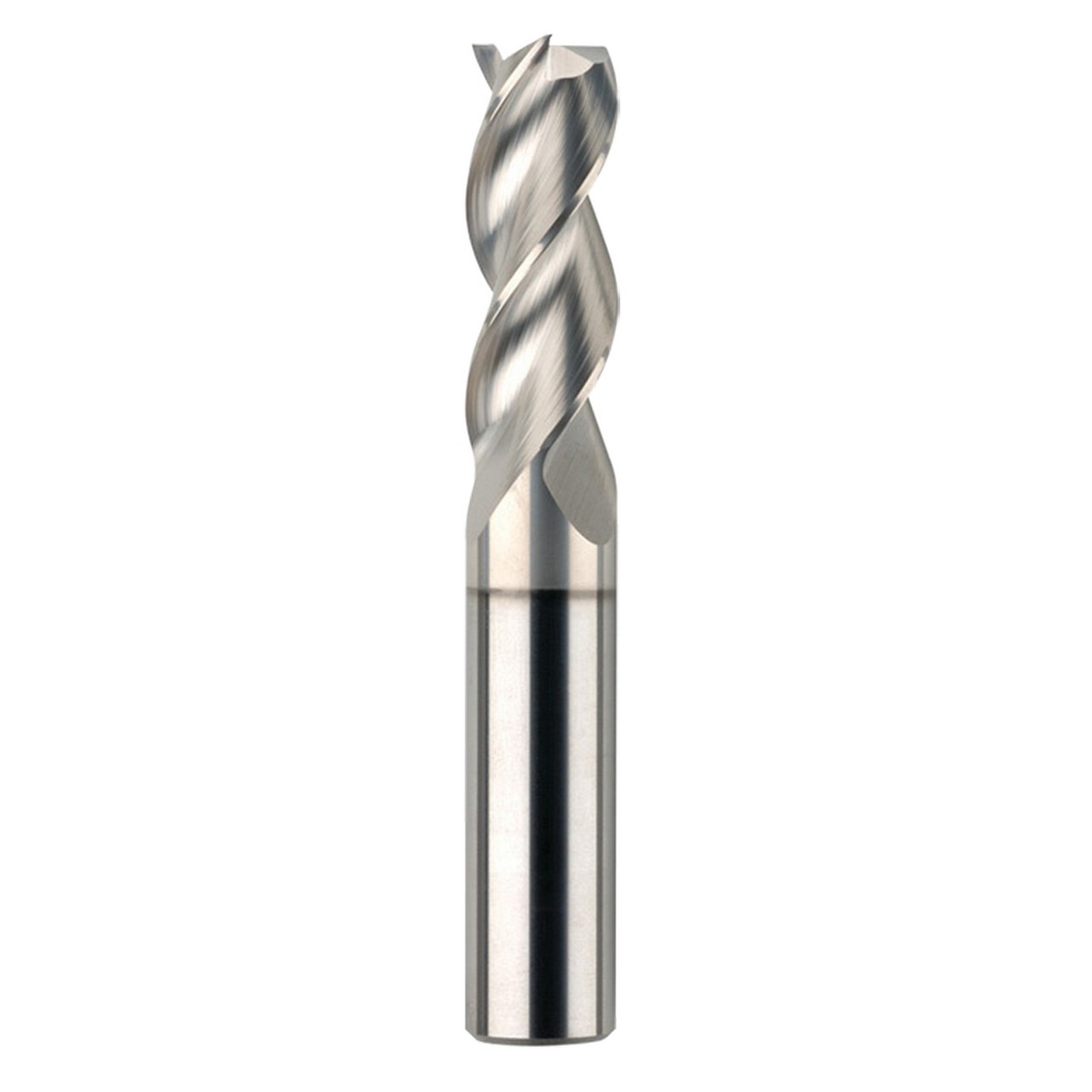

SGS 34707 | 5/16" Diameter x 5/16" Shank x 5/8" LOC x 2-1/2" OAL 3 Flute Uncoated Square End Mill

$25.07
Brand:
SGS
Finish/Coating:
UN
Length of Cut (Inch):
5/8"
Length of Cut (Decimal Inch):
0.6250"
Length of Cut (mm):
15.88mm
Shank Diameter (Inch):
5/16"
Shank Diameter (Decimal Inch):
0.3125"
Shank Diameter (mm):
7.94mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Helix Angle:
38 Degree
Cutting Direction:
RHC
SKU:
25196087
Weight:
0.09 LBS
Shipping:
Calculated at Checkout

Product Specifications
Cutting Diameter (Inch)5/16"
Shank Diameter (Inch)5/16"
Length of Cut (Inch)5/8"
Overall Length (Inch)2-1/2"
Shank Length (Inch)1.875"
Cut of DirectionRight Hand
Flute TypeSpiral
Helix Angle38 Degree
CoatingUncoated
Number of Flutes3

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
SGS
Finish/Coating:
UN
Length of Cut (Inch):
5/8"
Length of Cut (Decimal Inch):
0.6250"
Length of Cut (mm):
15.88mm
Shank Diameter (Inch):
5/16"
Shank Diameter (Decimal Inch):
0.3125"
Shank Diameter (mm):
7.94mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Helix Angle:
38 Degree
Cutting Direction:
RHC
