Features:
- Circular land allows for increased control at various speed and feed rates and reduces chatter
- Open fluting for deep slotting and profiling

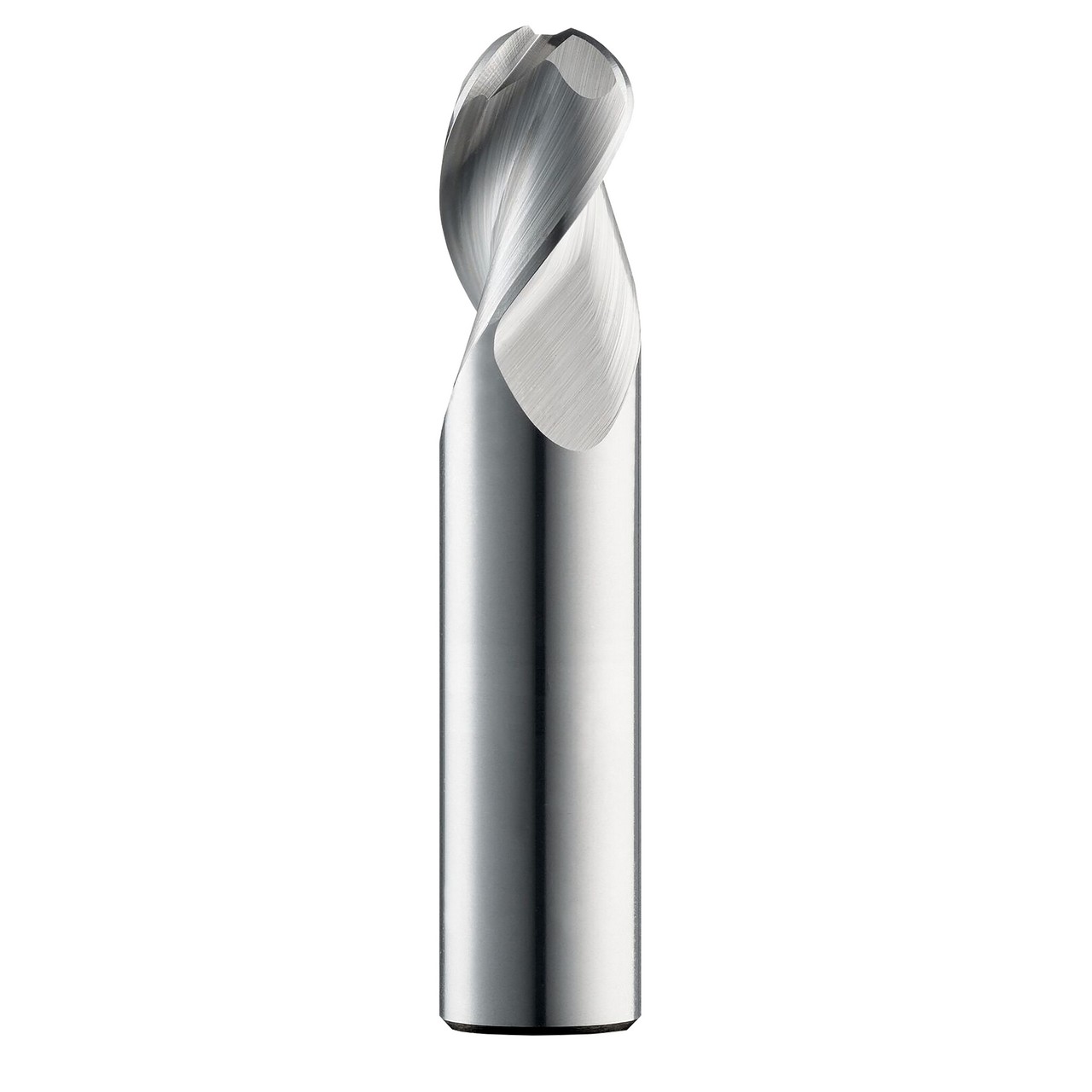

- Ball nose design ideal for finishing operations in complex workpieces
- Recommended for materials ≤ 150 BHN (≤ 7 HRC)
Product Specifications
| Cutting Diameter (Inch) | 1/2" |
| Shank Diameter (Inch) | 1/2" |
| Length of Cut (Inch) | 1-5/8" |
| Overall Length (Inch) | 4" |
| Shank Length (Inch) | 2.375" |
| Cut of Direction | Right Hand |
| Flute Type | Spiral |
| Helix Angle | 38 Degree |
| Coating | TiB2 |
| Number of Flutes | 3 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
SGS
Number of Flutes:
3
Length of Cut (Inch):
1-5/8"
Length of Cut (Decimal Inch):
1.6250"
Length of Cut (mm):
41.28mm
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
Overall Length (mm):
101.6mm
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Shank Diameter (mm):
12.7mm
Finish/Coating:
TB
Cutting Direction:
RHC
Helix Angle (Degree):
38 Degree
