Features:

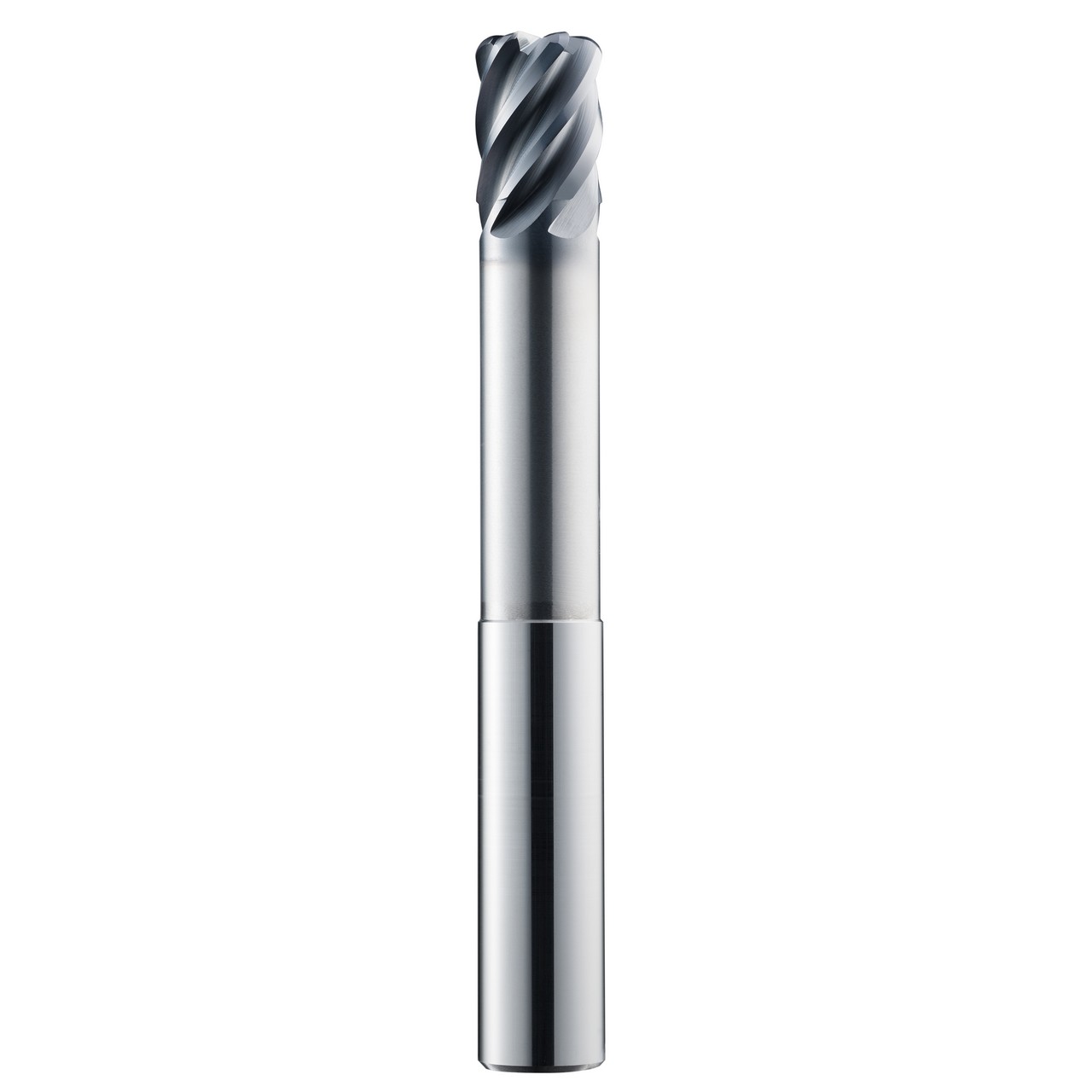

- Engineered for High Speed Milling using Trochoidal and Peel Milling techniques
- Eccentric relief provides superior strength and smoother surface finish
- Enhanced corner geometry with tight tolerance corner radius
- Recommended for materials ≤ 45 HRC (≤ 420 BHN)
Product Specifications
| Cutting Diameter (Inch) | 1/4" |
| Shank Diameter (Inch) | 1/4" |
| Length of Cut (Inch) | 3/8" |
| Overall Length (Inch) | 4" |
| Shank Length (Inch) | 3.625" |
| Cut of Direction | Right Hand |
| Flute Type | Spiral |
| Reach (Inch) | 1.125" |
| Corner Radius (Inch) | 0.015" |
| Helix Angle | 41 Degree |
| Coating | TX |
| Number of Flutes | 6 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
SGS
Number of Flutes:
6
End Type:
Corner Radius
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0150"
Corner Radius (mm):
0.38mm
Length of Cut (Inch):
3/8"
Length of Cut (Decimal Inch):
0.3750"
Length of Cut (mm):
9.53mm
Finish/Coating:
TX
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
Overall Length (mm):
101.6mm
Cutting Direction:
RHC
