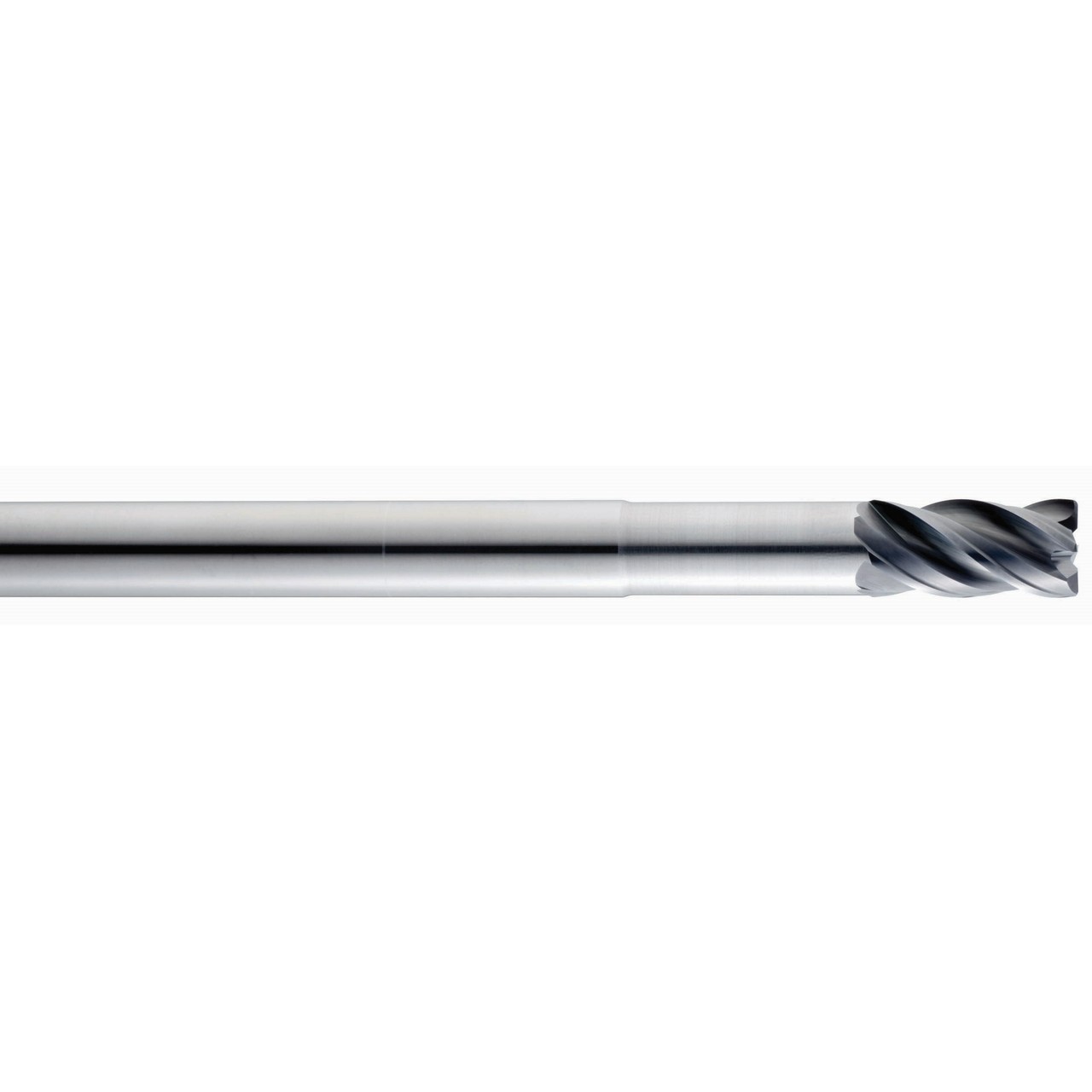

SGS 36452 | 5/16" Diameter x 5/16" Shank x 13/16" LOC x 4" OAL 4 Flute TX Coated Corner Radius End Mill

$49.47
Brand:
SGS
Number of Flutes:
4
End Type:
Corner Radius
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0200"
Corner Radius (mm):
0.51mm
Length of Cut (Inch):
13/16"
Length of Cut (Decimal Inch):
0.8130"
Length of Cut (mm):
20.65mm
Finish/Coating:
TX
Shank Diameter (Inch):
5/16"
Shank Diameter (Decimal Inch):
0.3125"
Shank Diameter (mm):
7.94mm
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
Overall Length (mm):
101.6mm
Cutting Direction:
RHC
SKU:
25196751
Weight:
0.15 LBS
Shipping:
Calculated at Checkout

Features:

  • Variable rake geometry alters and controls the cutting dynamic taking chatter suppression to an unprecedented level
  • Unequal helix design changes the cutting angle to improve harmonics
  • Unequal flute spacing helps to disrupt the rhythmic pattern created by the cutting edge helping to suppress damaging harmonics
  • Long reach design allows for deeper and faster cuts
  • Enhanced corner geometry with tight tolerance corner radius
  • Recommended for materials ≤ 45 HRC (≤ 420 BHN)

Product Specifications
Cutting Diameter (Inch)5/16"
Shank Diameter (Inch)5/16"
Length of Cut (Inch)13/16"
Overall Length (Inch)4"
Shank Length (Inch)2.375"
Cut of DirectionRight Hand
Flute TypeSpiral
Reach (Inch)1.625"
Corner Radius (Inch)0.02"
Helix Angle35-38 Degree
CoatingTX
Number of Flutes4
