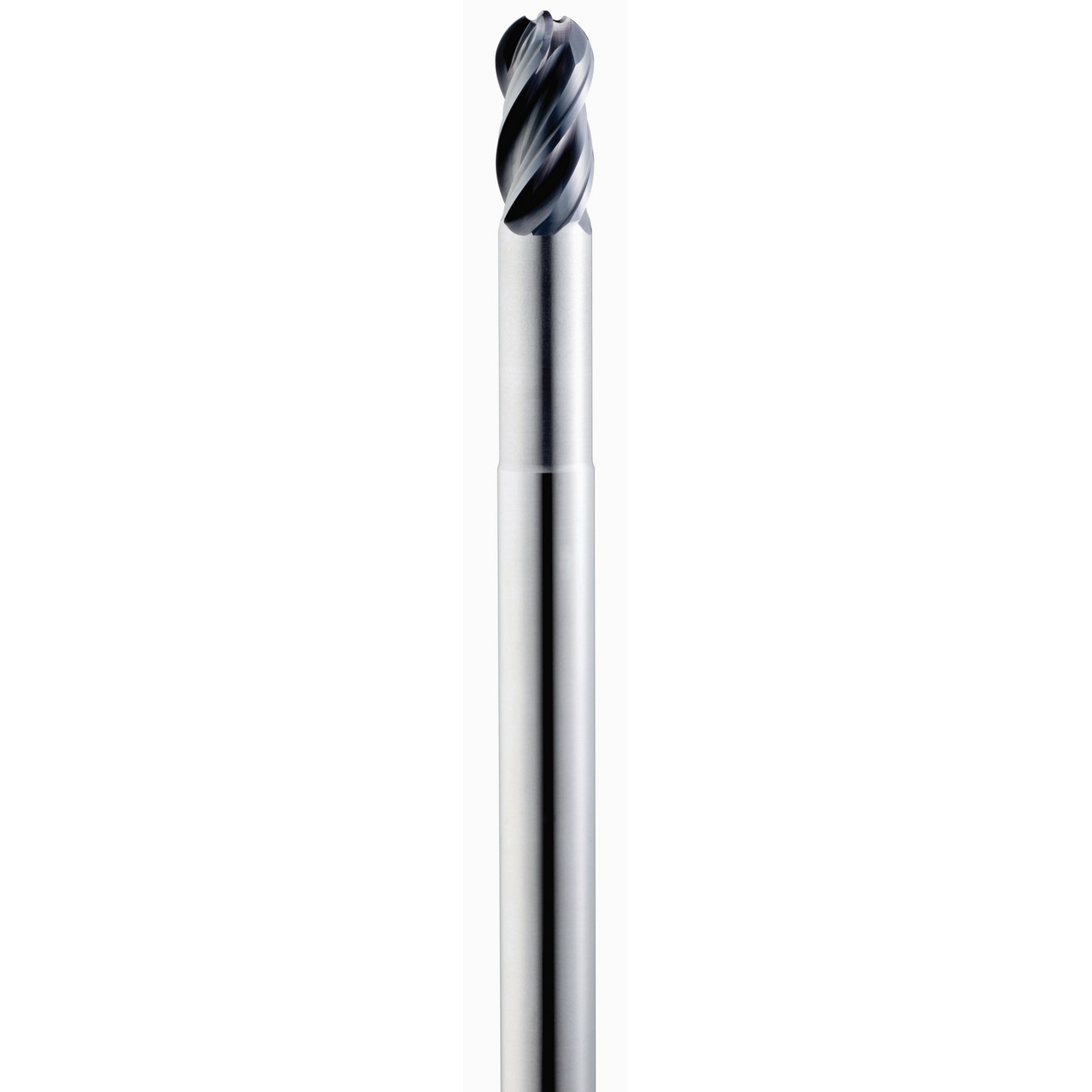

SGS 36480 | 1/4" Diameter x 1/4" Shank x 1/2" LOC x 4" OAL 4 Flute TX Coated Ball End Mill

$38.19
Brand:
SGS
Number of Flutes:
4
Length of Cut (Inch):
1/2"
Length of Cut (Decimal Inch):
0.5000"
Length of Cut (mm):
12.7mm
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
Overall Length (mm):
101.6mm
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Finish/Coating:
TX
Cutting Direction:
RHC
Helix Angle (Degree):
35-38 Degree
SKU:
25196768
UPC:
691781364803
Weight:
0.11 LBS
Shipping:
Calculated at Checkout

Product Specifications
Cutting Diameter (Inch)1/4"
Shank Diameter (Inch)1/4"
Length of Cut (Inch)1/2"
Overall Length (Inch)4"
Shank Length (Inch)2.75"
Cut of DirectionRight Hand
Flute TypeSpiral
Reach (Inch)1.25"
Helix Angle35-38 Degree
CoatingTX
Number of Flutes4

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
SGS
Number of Flutes:
4
Length of Cut (Inch):
1/2"
Length of Cut (Decimal Inch):
0.5000"
Length of Cut (mm):
12.7mm
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
Overall Length (mm):
101.6mm
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Finish/Coating:
TX
Cutting Direction:
RHC
Helix Angle (Degree):
35-38 Degree
