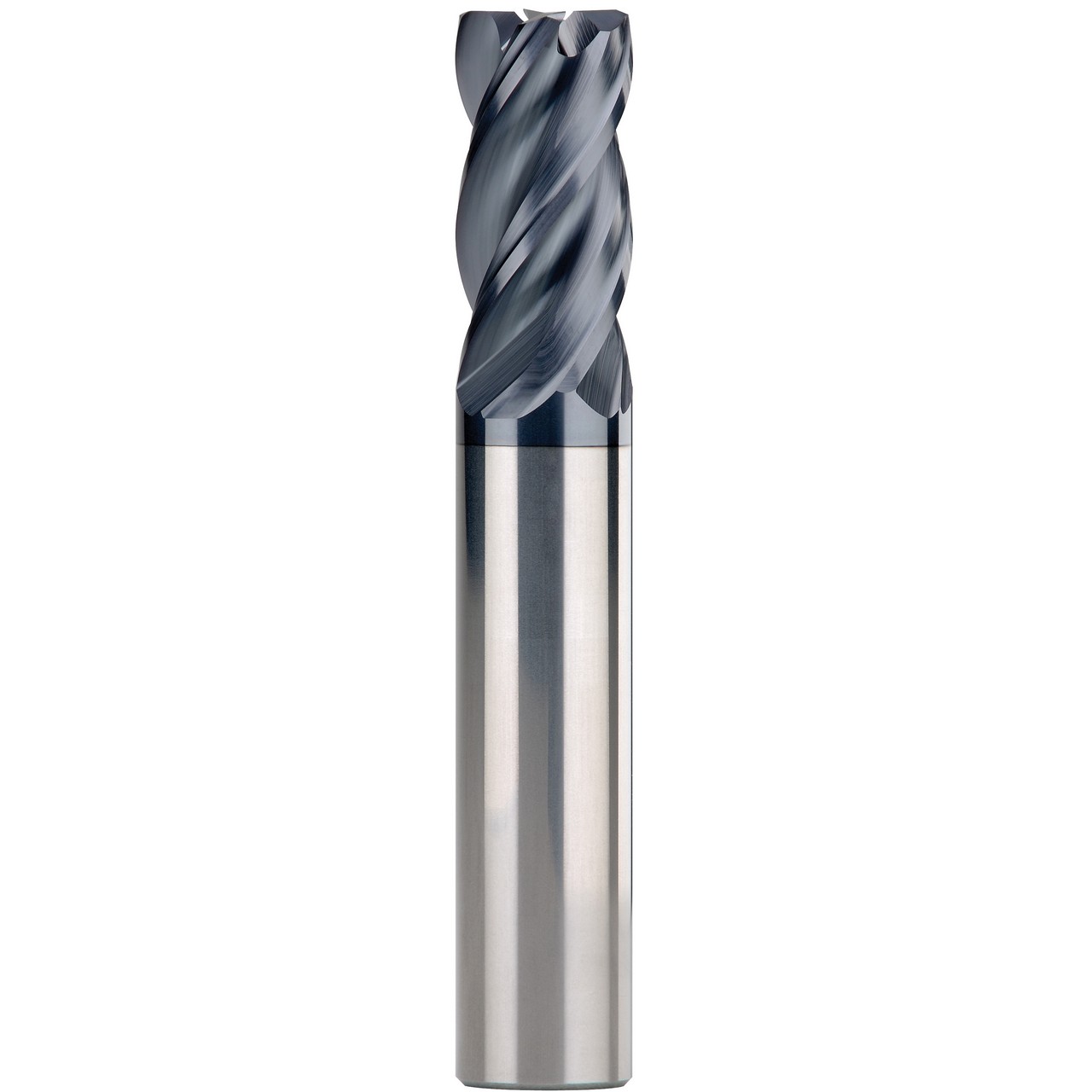

SGS 36736 | 3/8" Diameter x 3/8" Shank x 7/8" LOC x 2-1/2" OAL 4 Flute TX Coated Corner Radius End Mill

$47.50
Brand:
SGS
Number of Flutes:
4
End Type:
Corner Radius
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0150"
Corner Radius (mm):
0.38mm
Length of Cut (Inch):
7/8"
Length of Cut (Decimal Inch):
0.8750"
Length of Cut (mm):
22.23mm
Finish/Coating:
TX
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Shank Diameter (mm):
9.53mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Cutting Direction:
RHC
SKU:
25196887
UPC:
691781367361
Weight:
0.13 LBS
Shipping:
Calculated at Checkout

Features:

  • Variable rake geometry alters and controls the cutting dynamic taking chatter suppression to an unprecedented level
  • Unequal helix design changes the cutting angle to improve harmonics
  • Unequal flute spacing helps to disrupt the rhythmic pattern created by the cutting edge helping to suppress damaging harmonics
  • Long reach design allows for deeper and faster cuts
  • Enhanced corner geometry with tight tolerance corner radius
  • Recommended for materials ≤ 45 HRC (≤ 420 BHN)

Product Specifications
Cutting Diameter (Inch)3/8"
Shank Diameter (Inch)3/8"
Length of Cut (Inch)7/8"
Overall Length (Inch)2-1/2"
Shank Length (Inch)1.625"
Cut of DirectionRight Hand
Flute TypeSpiral
Corner Radius (Inch)0.015"
Helix Angle35-38 Degree
CoatingTX
Number of Flutes4
