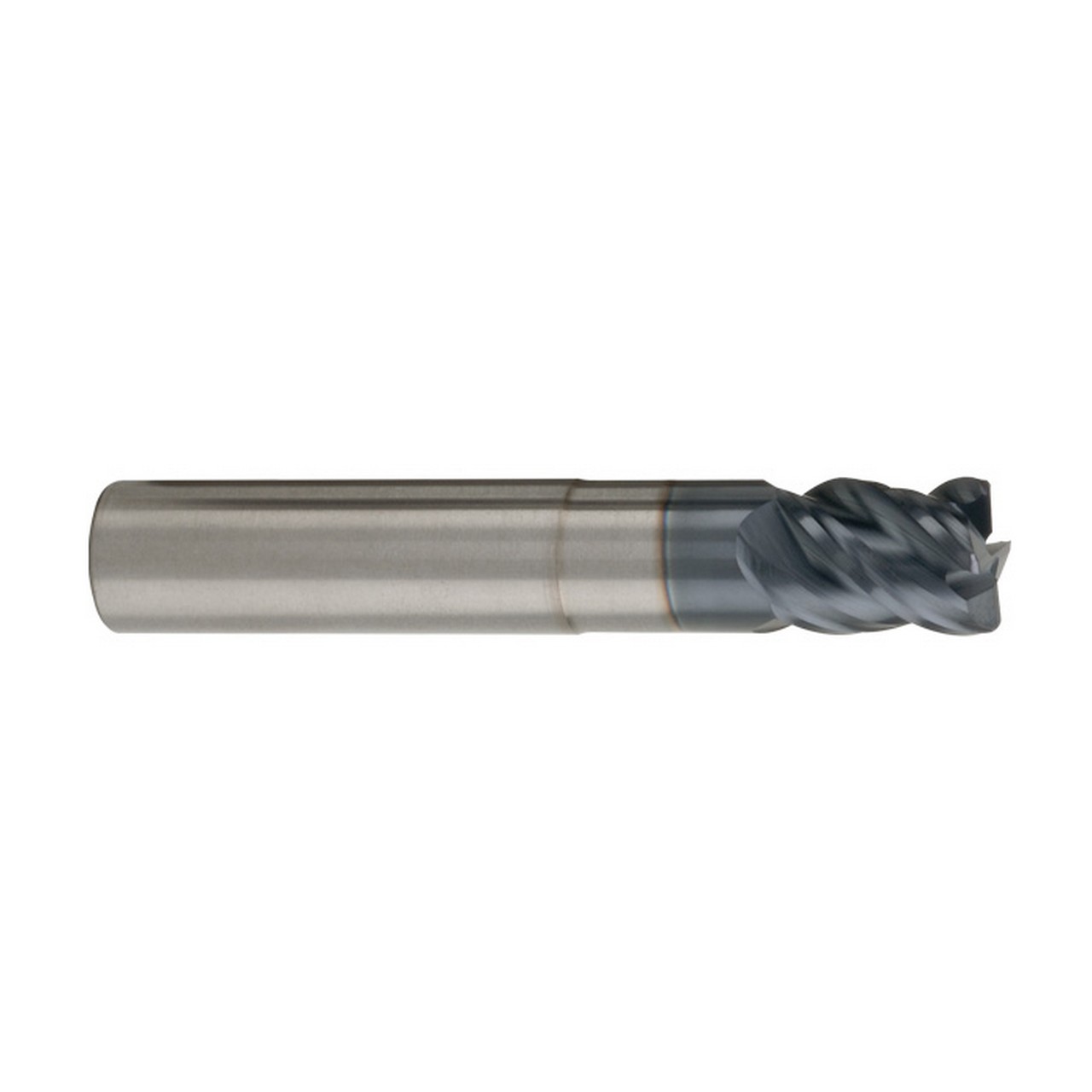

SGS 36785 | 7/16" Diameter x 4/9" Shank x 9/16" LOC x 2-3/4" OAL 4 Flute TX Coated Corner Radius End Mill

$74.77
Brand:
SGS
Number of Flutes:
4
End Type:
Corner Radius
Corner Radius (Inch):
3/64"
Corner Radius (Decimal Inch):
0.0400"
Corner Radius (mm):
1.02mm
Length of Cut (Inch):
9/16"
Length of Cut (Decimal Inch):
0.5620"
Length of Cut (mm):
14.27mm
Finish/Coating:
TX
Shank Diameter (Inch):
7/16"
Shank Diameter (Decimal Inch):
0.4375"
Shank Diameter (mm):
11.11mm
Overall Length (Inch):
2-3/4"
Overall Length (Decimal Inch):
2.7500"
Overall Length (mm):
69.85mm
Cutting Direction:
RHC
SKU:
25196897
Weight:
0.20 LBS
Shipping:
Calculated at Checkout

Product Specifications
Cutting Diameter (Inch)7/16"
Shank Diameter (Inch)4/9"
Length of Cut (Inch)9/16"
Overall Length (Inch)2-3/4"
Shank Length (Inch)1.75"
Cut of DirectionRight Hand
Flute TypeSpiral
Reach (Inch)1.01"
Corner Radius (Inch)0.04"
Helix Angle42-45 Degree
CoatingTX
Number of Flutes4

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
SGS
Number of Flutes:
4
End Type:
Corner Radius
Corner Radius (Inch):
3/64"
Corner Radius (Decimal Inch):
0.0400"
Corner Radius (mm):
1.02mm
Length of Cut (Inch):
9/16"
Length of Cut (Decimal Inch):
0.5620"
Length of Cut (mm):
14.27mm
Finish/Coating:
TX
Shank Diameter (Inch):
7/16"
Shank Diameter (Decimal Inch):
0.4375"
Shank Diameter (mm):
11.11mm
Overall Length (Inch):
2-3/4"
Overall Length (Decimal Inch):
2.7500"
Overall Length (mm):
69.85mm
Cutting Direction:
RHC
