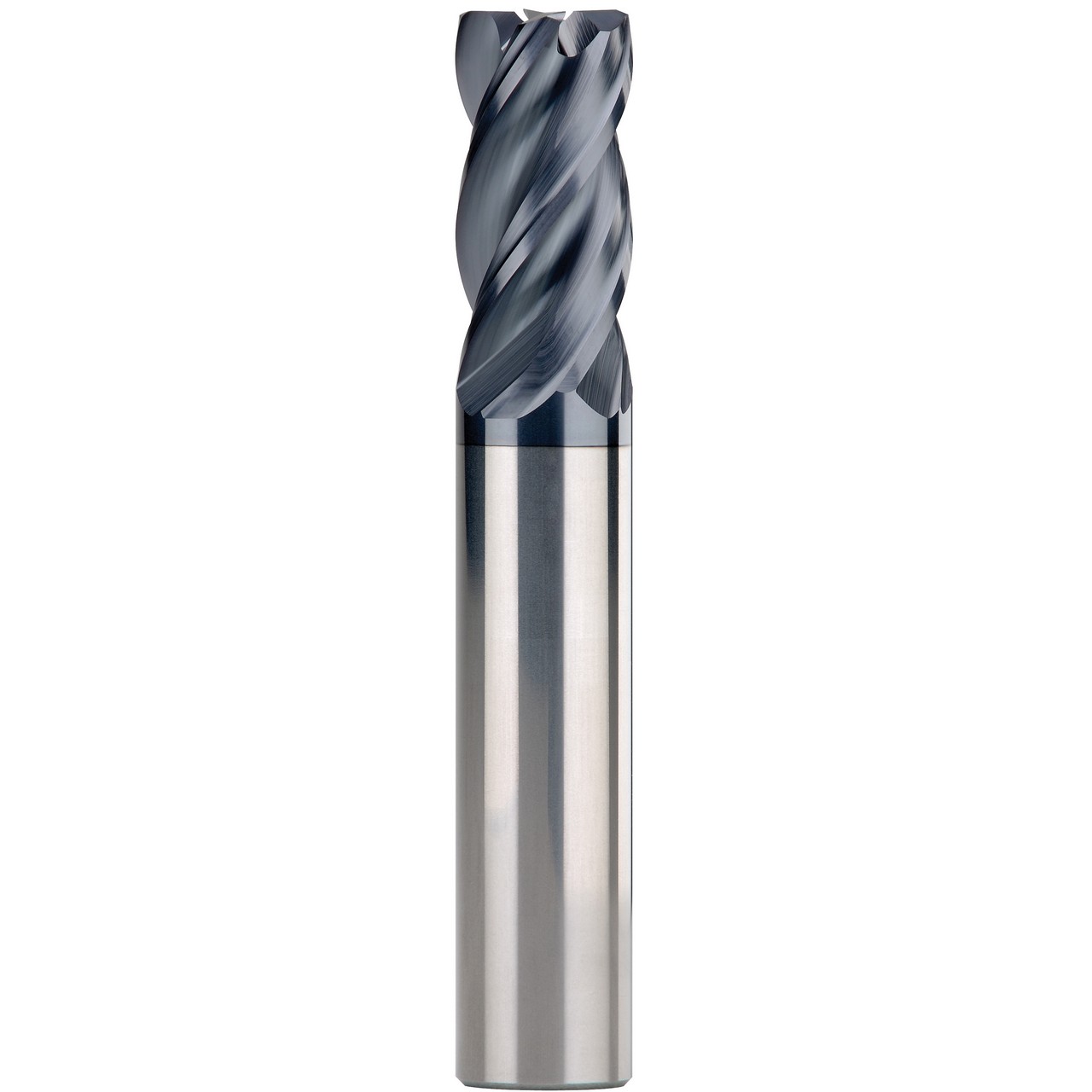

Features:
- Variable rake geometry alters and controls the cutting dynamic taking chatter suppression to an unprecedented level
- Unequal helix design changes the cutting angle to improve harmonics
- Unequal flute spacing helps to disrupt the rhythmic pattern created by the cutting edge helping to suppress damaging harmonics
- Long reach design allows for deeper and faster cuts
- Enhanced corner geometry with tight tolerance corner radius
- Recommended for materials ≤ 45 HRC (≤ 420 BHN)
Product Specifications
| Cutting Diameter (Inch) | 1/32" |
| Shank Diameter (Inch) | 1/8" |
| Length of Cut (Inch) | 5/64" |
| Overall Length (Inch) | 1-1/2" |
| Shank Length (Inch) | 1.4219" |
| Cut of Direction | Right Hand |
| Flute Type | Spiral |
| Corner Radius (Inch) | 0.005" |
| Helix Angle | 35-38 Degree |
| Coating | TX |
| Number of Flutes | 4 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
SGS
Number of Flutes:
4
End Type:
Corner Radius
Corner Radius (mm):
0.13mm
Length of Cut (Inch):
5/64"
Length of Cut (Decimal Inch):
0.0781"
Length of Cut (mm):
1.98mm
Finish/Coating:
TX
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
Overall Length (mm):
38.1mm
Cutting Direction:
RHC
