Features:
| Manufacturer Part Number | 37842 |
| Cutting Diameter (Inch) | 3/8" |
| Cutting Diameter (Decimal Inch) | 0.375" |
| Cutting Diameter (mm) | 9.53mm |
| Shank Diameter (Inch) | 3/8" |
| Shank Diameter (Decimal Inch) | 0.375" |
| Shank Diameter (mm) | 9.53mm |
| Length of Cut (Inch) | 3/4" |
| Length of Cut (Decimal Inch) | 0.750" |
| Length of Cut (mm) | 19.05mm |
| Overall Length (Inch) | 4" |
| Overall Length (Decimal Inch) | 4.000" |
| Overall Length (mm) | 101.60mm |
| Reach (Inch) | 1-1/2" |
| Reach (Decimal Inch) | 1.500" |
| Reach (mm) | 38.10mm |
| Neck Diameter (Decimal Inch) | 0.356" |
| Neck Diameter (mm) | 9.04mm |
| Corner Radius (Decimal Inch) | 0.030" |
| Corner Radius (mm) | 0.76mm |
| Shank Diameter Tolerance | h6 |
| Flute Type | Spiral |
| Number of Flutes | 5 |
| Center Cutting | No |
| Chip Breaker | No |
| High Performance | Yes |
| Coating | AlTiN (Ti-NAMITE-A) |

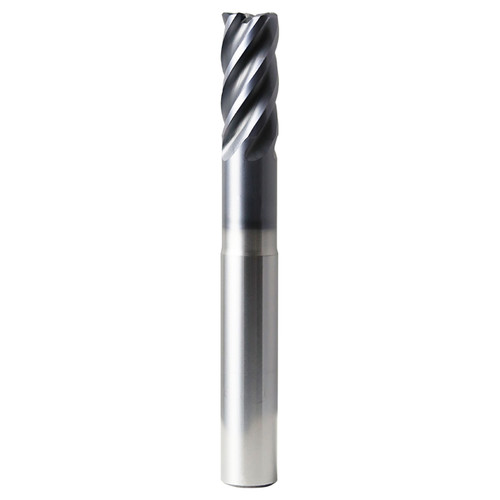

| Product Type | Corner Radius End Mill |
