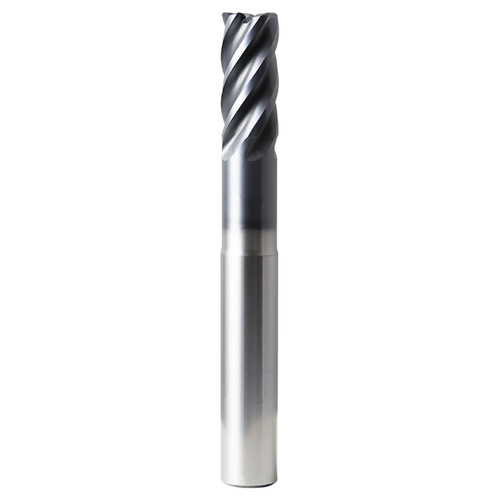

Features:
- Positive Radial Rake
- Variable Flute Pattern
- Open Center Design
- Long Reach
Product Specifications
| Manufacturer Part Number | 37858 |
| Cutting Diameter (Inch) | 7/16" |
| Cutting Diameter (Decimal Inch) | 0.438" |
| Cutting Diameter (mm) | 11.11mm |
| Shank Diameter (Inch) | 7/16" |
| Shank Diameter (Decimal Inch) | 0.438" |
| Shank Diameter (mm) | 11.11mm |
| Length of Cut (Inch) | 7/8" |
| Length of Cut (Decimal Inch) | 0.875" |
| Length of Cut (mm) | 22.23mm |
| Overall Length (Inch) | 4" |
| Overall Length (Decimal Inch) | 4.000" |
| Overall Length (mm) | 101.60mm |
| Reach (Inch) | 1-3/4" |
| Reach (Decimal Inch) | 1.750" |
| Reach (mm) | 44.45mm |
| Neck Diameter (Decimal Inch) | 0.416" |
| Neck Diameter (mm) | 10.57mm |
| Corner Radius (Decimal Inch) | 0.015" |
| Corner Radius (mm) | 0.38mm |
| Shank Diameter Tolerance | h6 |
| Flute Type | Spiral |
| Number of Flutes | 5 |
| Center Cutting | No |
| Chip Breaker | No |
| High Performance | Yes |
| Coating | AlTiN (Ti-NAMITE-A) |
| Product Type | Corner Radius End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
SGS
Cutting Diameter (Inch):
7/16"
Cutting Diameter (Decimal Inch):
0.4380"
Cutting Diameter (mm):
11.11mm
Shank Diameter (Inch):
7/16"
Shank Diameter (Decimal Inch):
0.4380"
Shank Diameter (mm):
11.11mm
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
Overall Length (mm):
101.60mm
Length of Cut (Inch):
7/8"
Length of Cut (Decimal Inch):
0.8750"
Length of Cut (mm):
22.23mm
Corner Radius (Decimal Inch):
0.0150"
Corner Radius (mm):
0.38mm
Finish/Coating:
AlTiN (Ti-NAMITE-A)
Number of Flute:
5
interval quantity:
1
