Features:
| Manufacturer Part Number | 37973 |
| Cutting Diameter (Inch) | 1" |
| Cutting Diameter (Decimal Inch) | 1.000" |
| Cutting Diameter (mm) | 25.40mm |
| Shank Diameter (Inch) | 1" |
| Shank Diameter (Decimal Inch) | 1.000" |
| Shank Diameter (mm) | 25.40mm |
| Length of Cut (Inch) | 2" |
| Length of Cut (Decimal Inch) | 2.000" |
| Length of Cut (mm) | 50.80mm |
| Overall Length (Inch) | 7" |
| Overall Length (Decimal Inch) | 7.000" |
| Overall Length (mm) | 177.80mm |
| Reach (Inch) | 4" |
| Reach (Decimal Inch) | 4.000" |
| Reach (mm) | 101.60mm |
| Neck Diameter (Decimal Inch) | 0.950" |
| Neck Diameter (mm) | 24.13mm |
| Corner Radius (Decimal Inch) | 0.090" |
| Corner Radius (mm) | 2.29mm |
| Shank Diameter Tolerance | h6 |
| Flute Type | Spiral |
| Number of Flutes | 5 |
| Center Cutting | No |
| Chip Breaker | Yes |
| High Performance | Yes |
| Coating | TM (Ti-NAMITE-M) |

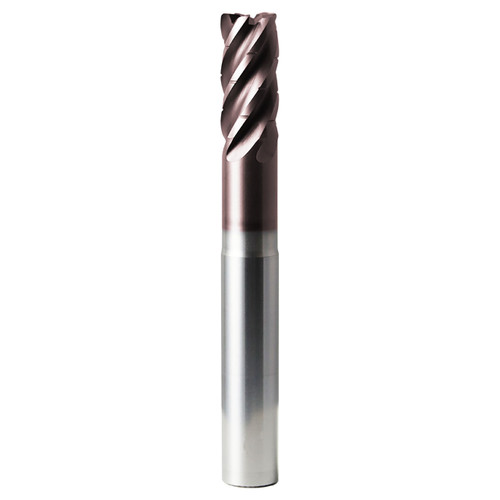

| Product Type | Chip Breaker Corner Radius End Mill |
