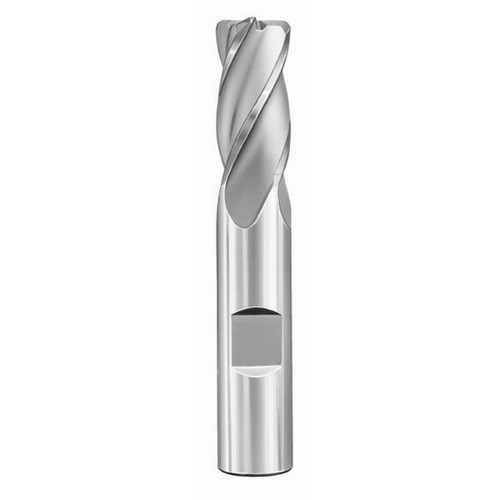

SGS 38037 | 5/16" Diameter x 5/16" Shank x 13/16" LOC x 2-1/2" OAL 4 Flute Uncoated Corner Radius End Mill

$24.04
Brand:
SGS
Number of Flutes:
4
End Type:
Corner Radius
Corner Radius (Inch):
3/64"
Corner Radius (Decimal Inch):
0.0450"
Corner Radius (mm):
1.14mm
Length of Cut (Inch):
13/16"
Length of Cut (Decimal Inch):
0.8120"
Length of Cut (mm):
20.62mm
Finish/Coating:
UN
Shank Diameter (Inch):
5/16"
Shank Diameter (Decimal Inch):
0.3125"
Shank Diameter (mm):
7.94mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Cutting Direction:
RHC
SKU:
25197307
Weight:
0.10 LBS
Shipping:
Calculated at Checkout

Product Specifications
Cutting Diameter (Inch)5/16"
Shank Diameter (Inch)5/16"
Length of Cut (Inch)13/16"
Overall Length (Inch)2-1/2"
Shank Length (Inch)1.688"
Cut of DirectionRight Hand
Flute TypeSpiral
Corner Radius (Inch)0.045"
Helix Angle30 Degree
CoatingUncoated
Number of Flutes4

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
SGS
Number of Flutes:
4
End Type:
Corner Radius
Corner Radius (Inch):
3/64"
Corner Radius (Decimal Inch):
0.0450"
Corner Radius (mm):
1.14mm
Length of Cut (Inch):
13/16"
Length of Cut (Decimal Inch):
0.8120"
Length of Cut (mm):
20.62mm
Finish/Coating:
UN
Shank Diameter (Inch):
5/16"
Shank Diameter (Decimal Inch):
0.3125"
Shank Diameter (mm):
7.94mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Cutting Direction:
RHC
