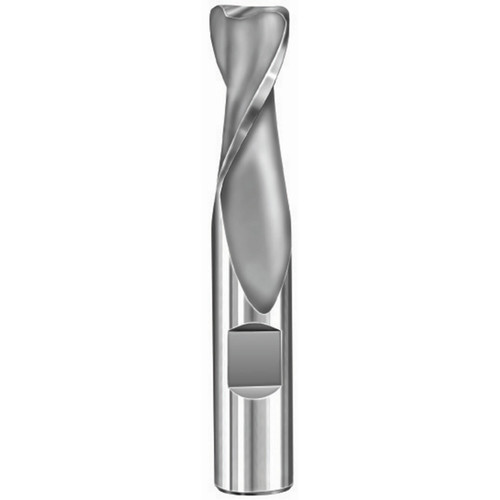

SGS 38295 | 3/4" Diameter x 3/4" Shank x 1-1/2" LOC x 4" OAL 2 Flute Uncoated Corner Radius End Mill

$133.38
Brand:
SGS
Number of Flutes:
2
End Type:
Corner Radius
Corner Radius (Inch):
1/16"
Corner Radius (Decimal Inch):
0.0600"
Corner Radius (mm):
1.52mm
Length of Cut (Inch):
1-1/2"
Length of Cut (Decimal Inch):
1.5000"
Length of Cut (mm):
38.1mm
Finish/Coating:
UN
Shank Diameter (Inch):
3/4"
Shank Diameter (Decimal Inch):
0.7500"
Shank Diameter (mm):
19.05mm
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
Overall Length (mm):
101.6mm
Cutting Direction:
RHC
SKU:
25197515
Weight:
0.75 LBS
Shipping:
Free Shipping

Product Specifications
Cutting Diameter (Inch)3/4"
Shank Diameter (Inch)3/4"
Length of Cut (Inch)1-1/2"
Overall Length (Inch)4"
Shank Length (Inch)1.8"
Cut of DirectionRight Hand
Flute TypeSpiral
Corner Radius (Inch)0.06"
Helix Angle30 Degree
CoatingUncoated
Number of Flutes2

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
SGS
Number of Flutes:
2
End Type:
Corner Radius
Corner Radius (Inch):
1/16"
Corner Radius (Decimal Inch):
0.0600"
Corner Radius (mm):
1.52mm
Length of Cut (Inch):
1-1/2"
Length of Cut (Decimal Inch):
1.5000"
Length of Cut (mm):
38.1mm
Finish/Coating:
UN
Shank Diameter (Inch):
3/4"
Shank Diameter (Decimal Inch):
0.7500"
Shank Diameter (mm):
19.05mm
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
Overall Length (mm):
101.6mm
Cutting Direction:
RHC
