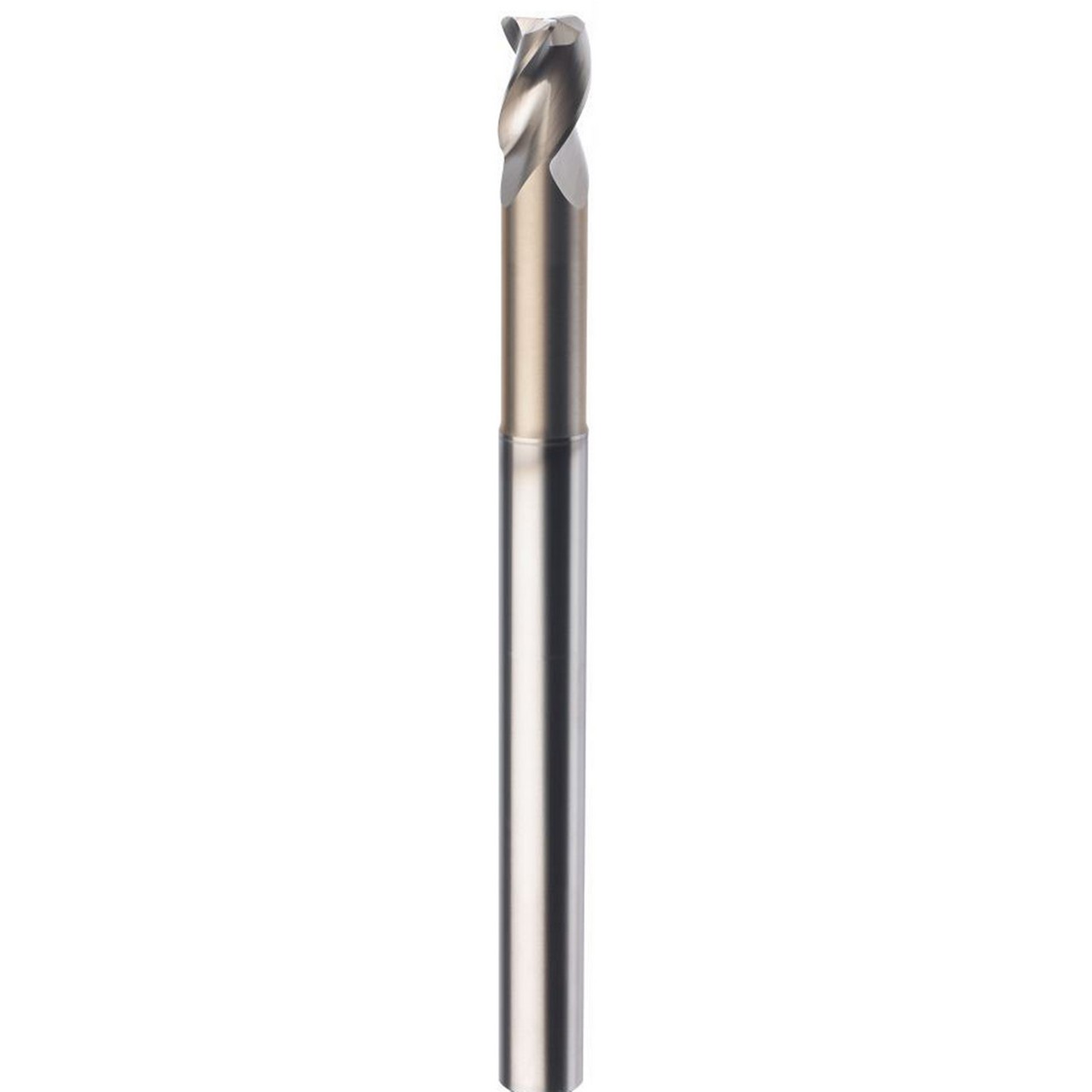

SGS 42707 | 8.0mm Diameter x 8.0mm Shank x 12.0mm LOC x 75.0mm OAL 3 Flute TiB2 Coated Square End Mill

$30.76
Brand:
SGS
Number of Flutes:
3
Length of Cut (Inch):
15/32"
Length of Cut (Decimal Inch):
0.4724"
Length of Cut (mm):
12.00mm
Finish/Coating:
TB
Shank Diameter (Inch):
5/16"
Shank Diameter (Decimal Inch):
0.3150"
Shank Diameter (mm):
8mm
Overall Length (Inch):
2-61/64"
Overall Length (Decimal Inch):
2.9528"
Overall Length (mm):
75mm
Helix Angle:
38 Degree
Cutting Direction:
RHC
SKU:
25198696
Weight:
0.16 LBS
Shipping:
Calculated at Checkout

Features:

  • Circular land allows for increased control at various speed and feed rates and reduces chatter
  • Symmetrical end gashing for excellent balance at high speeds and aggressive plunging capability
  • Open fluting for deep slotting and profiling
  • Polished flutes maximize chip evacuation and provides enhanced finish
  • Necked design with blended diameter transitions provide clearance to reach
  • Enhanced corner geometry with tight tolerance corner radius
  • Recommended for materials ≤ 150 BHN (≤ 7 HRC)

Product Specifications
Cutting Diameter (mm)8.0mm
Shank Diameter (mm)8.0mm
Length of Cut (mm)12.0mm
Overall Length (mm)75.0mm
Shank Length (mm)63.0mm
Cut of DirectionRHC
Flute TypeSpiral
Reach (mm)25mm
Helix Angle38 Degree
CoatingTiB2
Number of Flutes3
