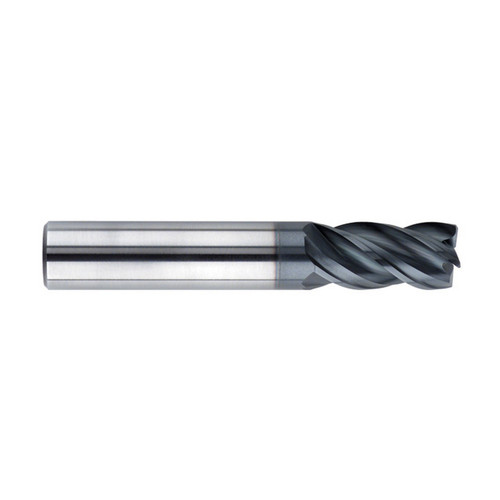

Features:
- The original Z-Carb design with an enhanced core and higher helix suited for the demands of high temperature alloys
- Unequal flute spacing helps to disrupt the rhythmic pattern created by the cutting edge helping to suppress damaging harmonics
- Optimal material removal rates through increased feed and depths of cut for difficult to machine materials
- Enhanced corner geometry with tight tolerance corner radius
- Recommended for materials ≤ 45 HRC (≤ 420 BHN)
Product Specifications
| Cutting Diameter (mm) | 20.0mm |
| Shank Diameter (mm) | 20.0mm |
| Length of Cut (mm) | 26.0mm |
| Overall Length (mm) | 92.0mm |
| Shank Length (mm) | 66.0mm |
| Cut of Direction | RHC |
| Flute Type | Spiral |
| Corner Radius (mm) | 1.1 mm |
| Helix Angle | 38-41 Degree |
| Coating | AlTiN |
| Number of Flutes | 4 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
SGS
Number of Flutes:
4
Length of Cut (Inch):
1-1/32"
Length of Cut (Decimal Inch):
1.0236"
Length of Cut (mm):
26mm
Finish/Coating:
TA
Shank Diameter (Inch):
25/32"
Shank Diameter (Decimal Inch):
0.7874"
Shank Diameter (mm):
20mm
Overall Length (Inch):
3-5/8"
Overall Length (Decimal Inch):
3.6220"
Overall Length (mm):
92mm
Cutting Direction:
RHC
interval quantity:
