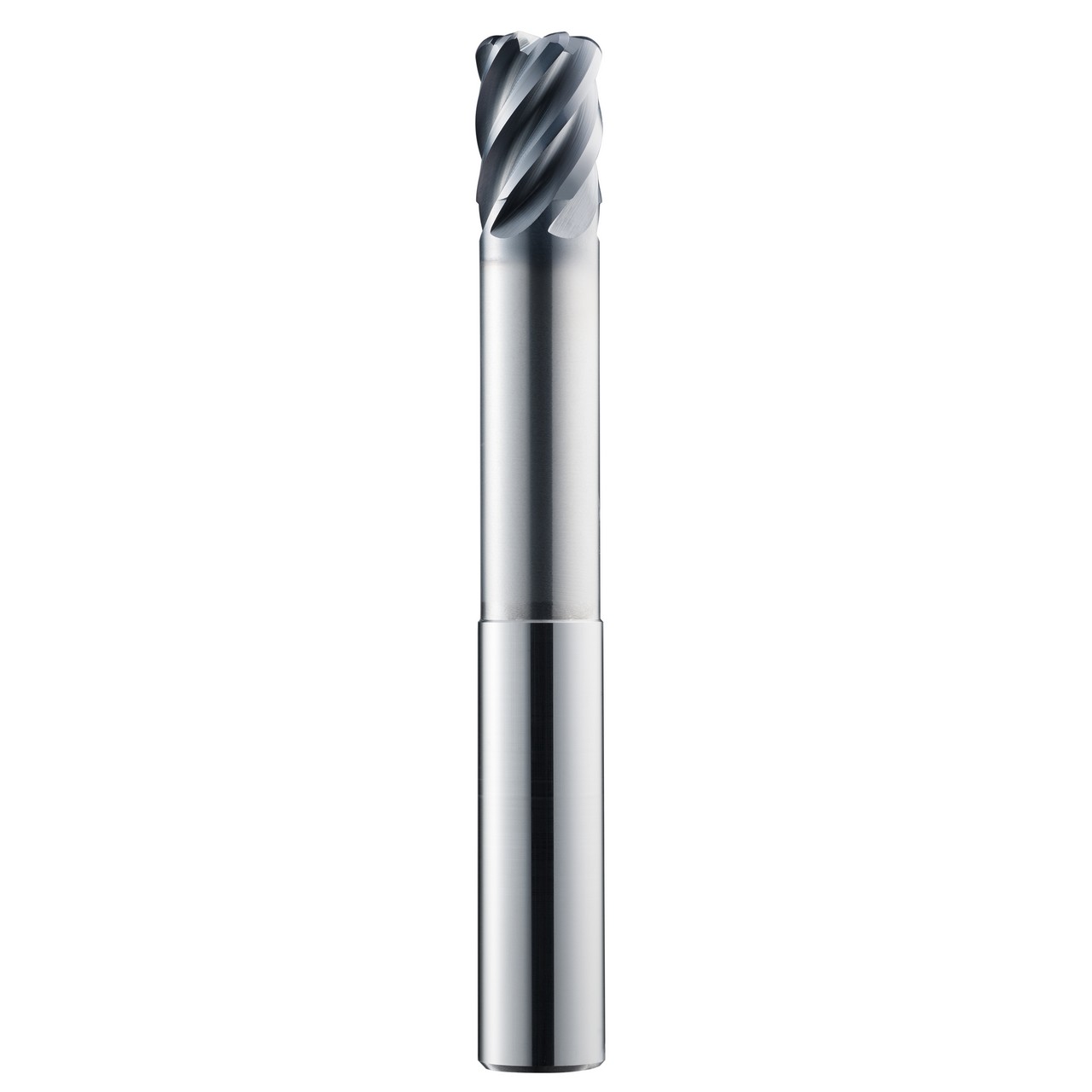

Features:
- Engineered for High Speed Milling using Trochoidal and Peel Milling techniques
- Eccentric relief provides superior strength and smoother surface finish
- Enhanced corner geometry with tight tolerance corner radius
- Recommended for materials ≤ 45 HRC (≤ 420 BHN)
Product Specifications
| Cutting Diameter (Inch) | 10.0 mm |
| Shank Diameter (Inch) | 10.0 mm |
| Length of Cut (Inch) | 12 mm |
| Overall Length (Inch) | 100 mm |
| Shank Length (Inch) | 60 mm |
| Cut of Direction | RHC |
| Flute Type | Spiral |
| Reach (Inch) | 40.1 mm |
| Corner Radius (Inch) | 1.0 mm |
| Helix Angle | 41 Degree |
| Coating | TX |
| Number of Flutes | 6 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
SGS
Number of Flutes:
6
End Type:
Corner Radius
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0197"
Corner Radius (mm):
0.5mm
Length of Cut (Inch):
15/32"
Length of Cut (Decimal Inch):
0.4724"
Length of Cut (mm):
12.00mm
Finish/Coating:
TX
Shank Diameter (Inch):
25/64"
Shank Diameter (Decimal Inch):
0.3937"
Shank Diameter (mm):
10.00mm
Overall Length (Inch):
3-15/16"
Overall Length (Decimal Inch):
3.9370"
Overall Length (mm):
100mm
Cutting Direction:
RHC
