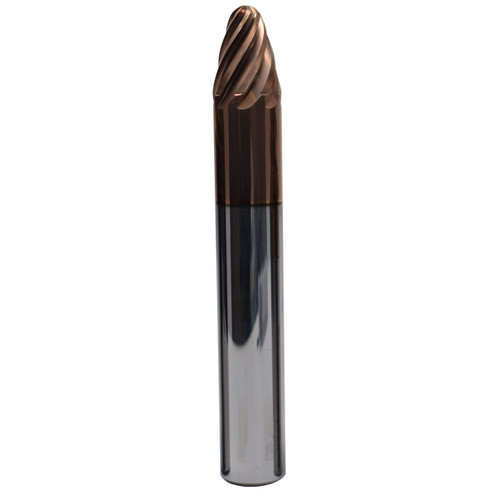

SGS 45722 | 10.0mm Diameter x 10.0mm Shank x 12.5mm LOC x 89.0mm OAL 3 Flute TiB2 Coated Tapered End Mill

$164.33
Brand:
SGS
Length of Cut (Inch):
31/64"
Length of Cut (Decimal Inch):
0.4921"
Length of Cut (mm):
12.5mm
Shank Diameter (Inch):
25/64"
Shank Diameter (Decimal Inch):
0.3937"
Shank Diameter (mm):
10.00mm
Number of Flutes:
3
Overall Length (Inch):
3-1/2"
Overall Length (Decimal Inch):
3.5039"
Overall Length (mm):
89mm
Helix Angle:
20 Degree
Finish/Coating:
TB
SKU:
25199457
Weight:
0.21 LBS
Shipping:
Free Shipping

Product Specifications
Cutting Diameter (mm)10.0mm
Shank Diameter (mm)10.0mm
Length of Cut (mm)12.5mm
Overall Length (mm)89.0mm
Cut of DirectionRHC
Flute TypeSpiral
Helix Angle20 Degree
Angle20 Degree
CoatingTiB2
Number of Flutes3
Tip Diameter (mm)4.1 mm

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
SGS
Length of Cut (Inch):
31/64"
Length of Cut (Decimal Inch):
0.4921"
Length of Cut (mm):
12.5mm
Shank Diameter (Inch):
25/64"
Shank Diameter (Decimal Inch):
0.3937"
Shank Diameter (mm):
10.00mm
Number of Flutes:
3
Overall Length (Inch):
3-1/2"
Overall Length (Decimal Inch):
3.5039"
Overall Length (mm):
89mm
Helix Angle:
20 Degree
Finish/Coating:
TB
