Features:
- Unequal helix design reduces damaging harmonics by changing the angle at which each cutting edge enters and exits the material
- Unequal flute spacing helps to disrupt the rhythmic pattern created by the cutting edge helping to suppress damaging harmonics
- Optimal material removal rates through increased feed and depths of cut

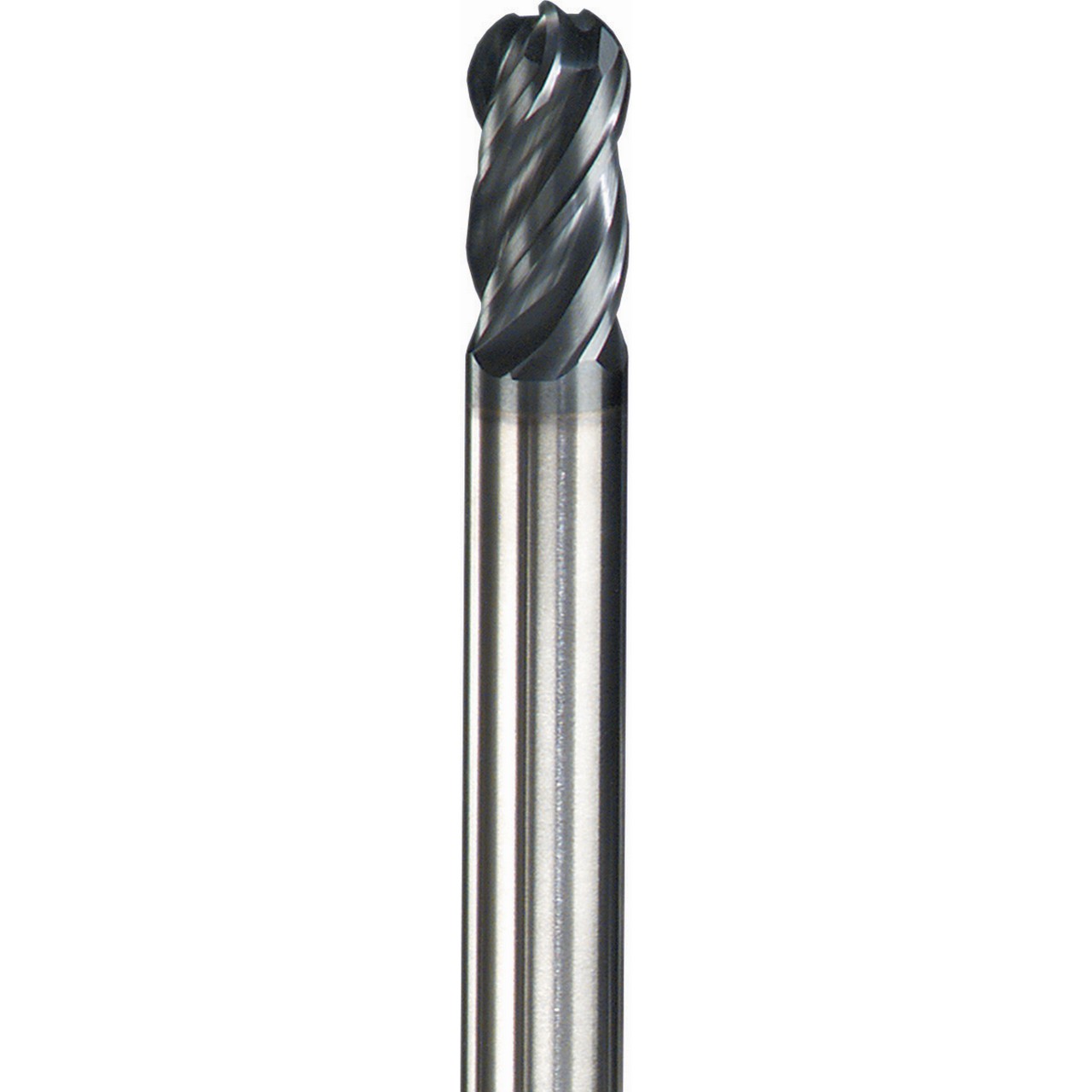

- Ball nose design ideal for finishing operations in complex workpieces
- Recommended for materials ≤ 45 HRC (≤ 420 BHN)
Product Specifications
| Cutting Diameter (mm) | 20.0mm |
| Shank Diameter (mm) | 20.0mm |
| Length of Cut (mm) | 38.0mm |
| Overall Length (mm) | 104mm |
| Shank Length (mm) | 66.1mm |
| Cut of Direction | RHC |
| Flute Type | Spiral |
| Helix Angle | 35-38 Degree |
| Coating | TX |
| Number of Flutes | 4 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
SGS
Number of Flutes:
4
Length of Cut (Inch):
1-1/2"
Length of Cut (Decimal Inch):
1.4961"
Length of Cut (mm):
38mm
Overall Length (Inch):
4-3/32"
Overall Length (Decimal Inch):
4.0945"
Overall Length (mm):
104mm
Shank Diameter (Inch):
25/32"
Shank Diameter (Decimal Inch):
0.7874"
Shank Diameter (mm):
20mm
Finish/Coating:
TX
Cutting Direction:
RHC
Helix Angle (Degree):
35-38 Degree
