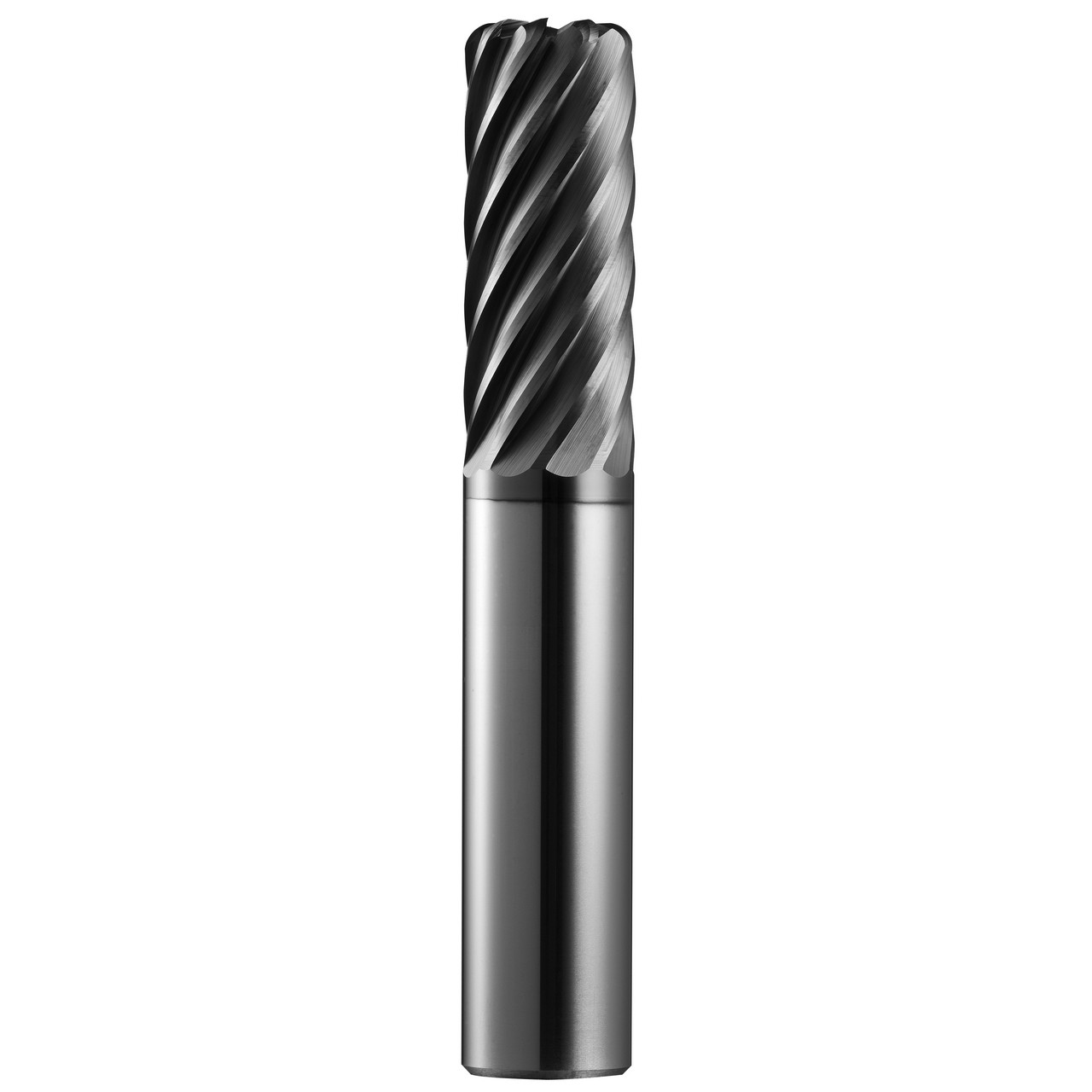

Features:
- Heavy core and rigid design allow for straight walls
- High flute count design results in smoother cutting performance and enhanced tool life in precise finishing applications
- Enhanced corner geometry with tight tolerance corner radius
- Recommended for materials ≤ 45 HRC (≤ 420 BHN)
Product Specifications
| Cutting Diameter (Inch) | 25.1 mm |
| Shank Diameter (Inch) | 25.1 mm |
| Length of Cut (Inch) | 38.1 mm |
| Overall Length (Inch) | 104.1 mm |
| Shank Length (Inch) | 66 mm |
| Cut of Direction | RHC |
| Flute Type | Spiral |
| Corner Radius (Inch) | 3.0 mm |
| Helix Angle | 35 Degree |
| Coating | TX |
| Number of Flutes | 11 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
SGS
Number of Flutes:
11
End Type:
Corner Radius
Corner Radius (Inch):
3/32"
Corner Radius (Decimal Inch):
0.0984"
Corner Radius (mm):
2.5mm
Length of Cut (Inch):
1-1/2"
Length of Cut (Decimal Inch):
1.4961"
Length of Cut (mm):
38mm
Finish/Coating:
TX
Shank Diameter (Inch):
63/64"
Shank Diameter (Decimal Inch):
0.9843"
Shank Diameter (mm):
25mm
Overall Length (Inch):
4-3/32"
Overall Length (Decimal Inch):
4.0945"
Overall Length (mm):
104mm
Cutting Direction:
RHC
