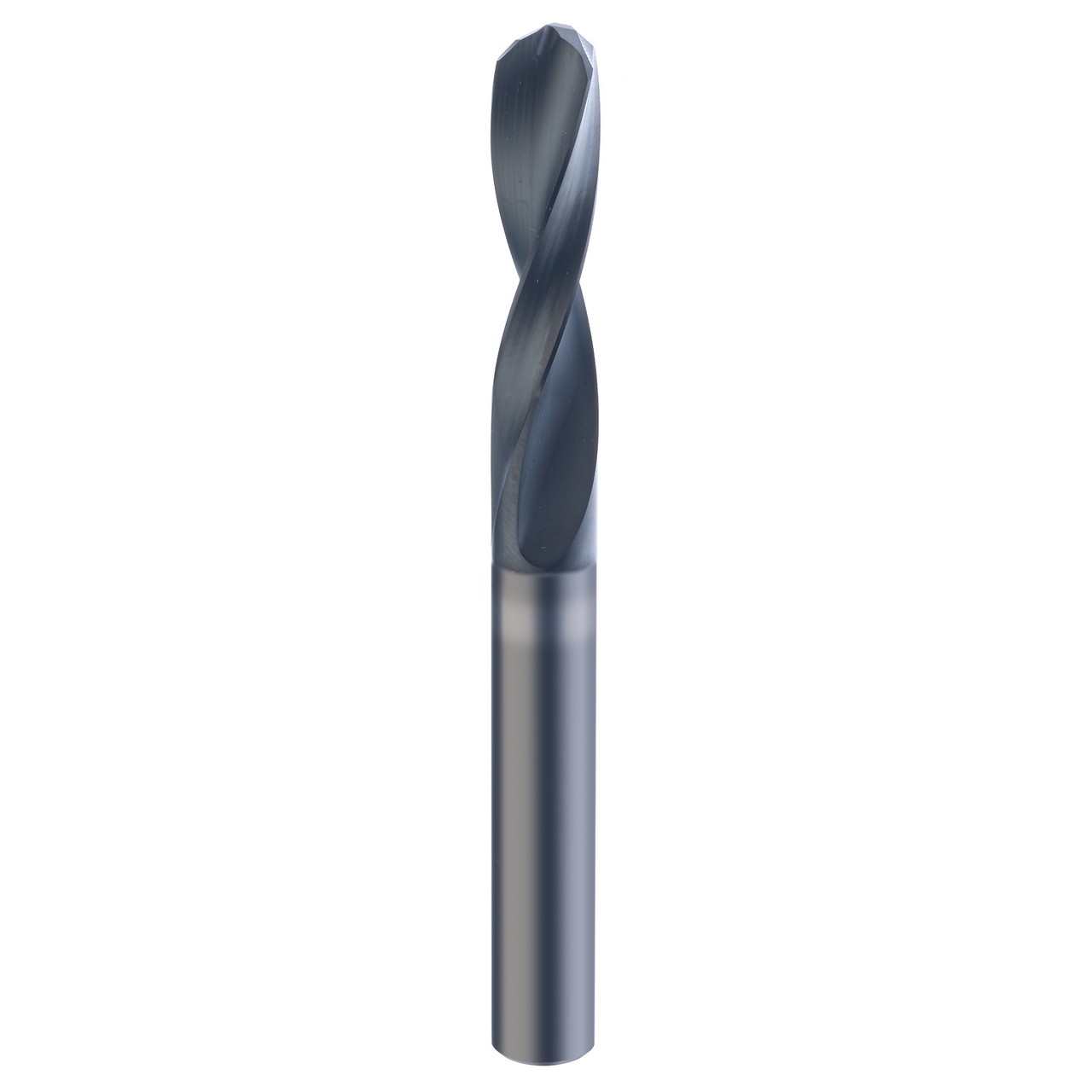

Features:
- Double margin design stabilizes the drill for greater hole accuracy and improved surface finish
- Notched point reduces thrust force over conventional designs
- 8 facet point reduces fiber breakout and delamination on exit
- 90 degree secondary chamfer angle improves hole entrance and exit quality
Product Specifications
| Cutting Diameter (Inch) | 3/8" |
| Shank Diameter (Inch) | 3/8" |
| Length of Cut (Inch) | 1-27/32" |
| Overall Length (Inch) | 3-1/2" |
| Shank Length (Inch) | 1.563" |
| Cut of Direction | Right Hand |
| Flute Type | Spiral |
| Cleared Length (Inch) | 1.5781" |
| Helix Angle | 20 Degree |
| Point Angle | 145 Degree |
| Coating | Crystalline Diamond |
| Number of Flutes | 2 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
SGS
Drill Point Angle:
145 Degree
Overall Length (Inch):
3-1/2"
Overall Length (Decimal Inch):
3.5000"
Overall Length (mm):
88.9mm
Finish/Coating:
TD
Flute Type:
Spiral
Cutting Direction:
RHC
interval quantity:
1
